SYSTEM PACK
 CPC-180-ABNAB-Mynute28

11-28kW Non-Condensing Boiler with 180 litre Store
S-Plan Primary Controls

Almost everything you need for a modern high performance hot water and heating system, suitable for a 3 bedroom, two bathroom property.  As much of the system that can be pre-fabricated is - either in the Vokéra Mynute boiler or on the DPS Pandora Heat Bank Thermal Store, reducing site installation requirements to an absolute minimum.

No separate controls, tanks, or expensive equipment are required - only radiators & valves, pipe & fittings.

The broad modulating range of the boiler makes it suitable for low and high heating loads (28kW), while the Pandora will happily satisfy two or more outlets simultaneously (100kw).

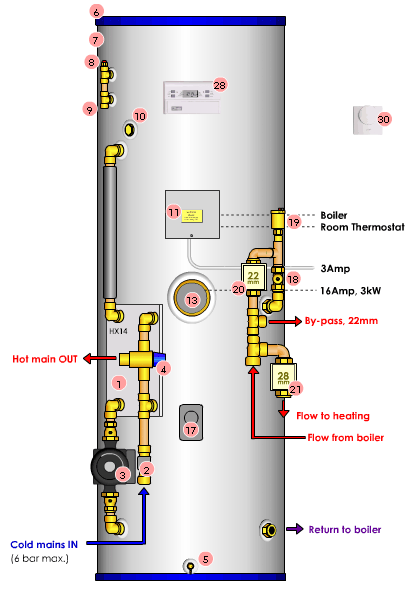

1 Plate heat exchanger, L18-14 (100kw)
2 Flow switch
3 Heat exchanger pump
4 Thermostatic mixing valve,
5 Drain off cock
6 Removable lid
7 White plastic coated steel casing
8 Anti-vacuum valve
9 Anti-pressure valve
10 Filling Point
11 Wiring Centre
13 Boost Immersion Heater
17 Cylinder Thermostat, Immersed [75°C]
18 Lockshield Balancing Valve, 22mm
19 Automatic Air Vent with Manual Vent
20 Hot Water Zone Valve, 22mm
21 Heating Motorised Valve, 28mm
28 Danfoss FP715 Two Channel Programmer
30 Danfoss RMT230 Room Thermostat

Standard Flue Kit included

Other Components you may need (a suggested selection):
Radiators     Radiator Valves    Isolating Valves   Tube   Pipe   Fittings
