SYSTEM
PACK |
|||||||||||||||||||
|
11-28kW Condensing Boiler with 180 litre Store |
|||||||||||||||||||
|
Almost everything you need for a modern very high efficiency and performance hot water and heating system, suitable for a 3 bedroom, two bathroom property. As much of the system that can be pre-fabricated is - either in the Vokéra Synergy condensing boiler or on the DPS Pandora Heat Bank Thermal Store, reducing site installation requirements to an absolute minimum. No separate controls, tanks, or expensive equipment are required - only radiators & valves, pipe & fittings. The
broad modulating range of the boiler makes it suitable for low and high
heating loads (28kW), while the Pandora will happily satisfy two
outlets simultaneously (100kw). |
|||||||||||||||||||
 |

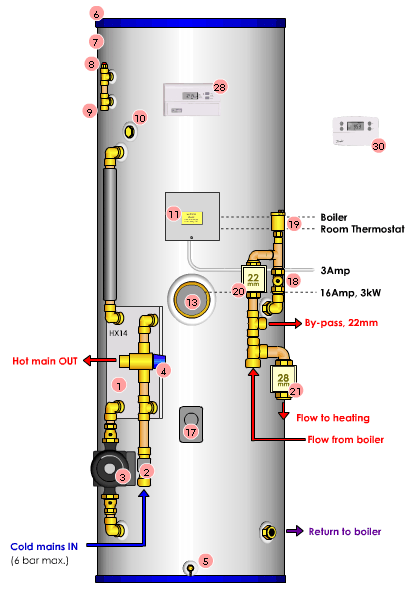

1 Plate heat exchanger, L18-14 (100kw) 2 Flow switch 3 Heat exchanger pump 4 Thermostatic mixing valve, 5 Drain off cock 6 Removable lid 7 White plastic coated steel casing 8 Anti-vacuum valve 9 Anti-pressure valve 10 Filling Point 11 Wiring Centre 13 Boost Immersion Heater 17 Cylinder Thermostat, Immersed [75°C] 18 Lockshield Balancing Valve, 22mm 19 Automatic Air Vent with Manual Vent 20 Hot Water Zone Valve, 22mm 21 Heating Motorised Valve, 28mm 28 Danfoss TS715 Programmer (Hot Water) 30 Danfoss TP7000 Programmable Thermostat
Standard Flue Kit included |
||||||||||||||||||
|
Wiring |
|||||||||||||||||||
