 SPECIFICATION 2001-1  Peter Lomax
Xcel Heat Bank with GX-VMV-Underfloor Primaries

10/04/01
Copies / revised specifications
can be obtained via fax / email

Heat Bank System
Xcel Cylinder
28 Plate Heat Exchanger (45+ ltr/min)
Directly heated from remote source
40mm Foam Insulation
GX-Plan primary controls
Danfoss VMV20 UF Control Valve
Underfloor Primaries
Fitted Primary Pump, 6m head
All fitted controls are wired
Thermostatic Blending Valve 22mm
28mm Primaries
Backup Immersion Heater
Secondary Return Pump
Cased



Unit Code

 XC-210-2001-1

Capacity [litres]

 210

Base Diameter [mm]

 450

Overall Diameter [mm]

 530

Height [mm]

 1550

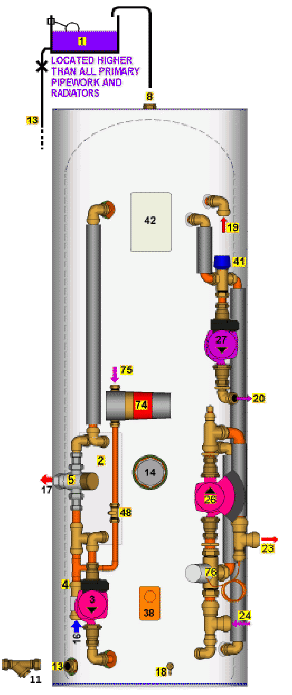

1   Remote Feed and Expansion Tank
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
8   Vent
11  Y-Pattern Strainer (supplied loose)
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler
20  Return to Boiler
23  Flow to Heating 28mm
24  Return from Heating Circuit
26  Primary Pump - Grundfos Alpha 6m
26  Primary Pump UPS 15/60
38  Cylinder Thermostat (with Immersion Pocket)
39  White Coated Steel Casing
41  Primary Blending Valve
42  Wiring Centre
48  Check Valve
74  UP 15 40-P Bronze Secondary Circulator
75  Secondary Return
76  Danfoss VMV20 Valve with RAVK Sensor
