 Heat Bank Thermal Store System
Stowaway advanced F+E 28 Plate Heat
Exchanger (45+ ltr/min) Indirect
40mm
Foam Insulation High duty primary
coil
S-Plan primary controls Sealed primary
system 18 litre Primary Expansion Vessel Fitted programmer
Fitted Primary Pumps All fitted controls
are wired Manual Fill - No Overflow Thermostatic
Blending Valve 22mm Low Water Level Indicator Primary Filling
Loop
Backup Immersion Heater Cased

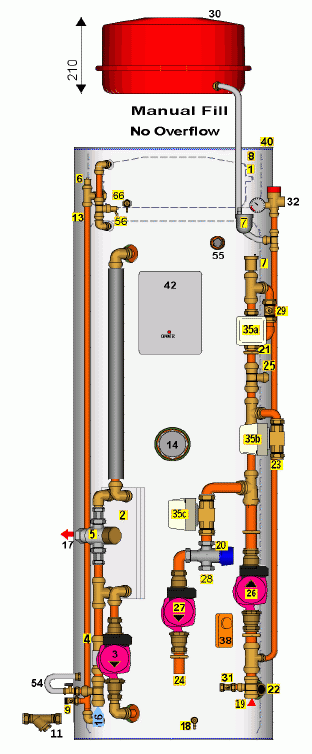

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 6 Manual Air Vent 7 Automatic Air Vent 8 Integral Overflow Chamber 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 13 Connection to Expansion Vessel 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 28mm 20 Underfloor Blending Valve (Heatguard 28mm) 21 Flow to Primary Coil 22 Return from Primary Coil 23 Flow to Heating 28mm 24 Flow to Underfloor System 28mm 25 By-Pass Connection 22mm 26 Boiler Pump UPS 15/60 27 Underfloor Pump ALPHA 15/60 28 Return from Underfloor 28mm 29 Primary Coil Balancing Valve 30 Primary Expansion Vessel 18 litres 32 Pressure Relief Valve with Gauge 3 bar 1/2'' 33 Programmer Danfoss CP715 35a Two Port Zone Valve - Hot Water 22mm 35b Two Port Zone Valve - Radiators 22mm 35c Two Port Zone Valve - Underfloor 28mm 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 40 Tight Fitting Lid 42 Wiring Centre 54 Filling Loop (disconnect after use) 55 Water Level Switch 56 Manual Water Level Test and Drain 66 Overfill Drain Cock |
| ||||||||||
