 Heat Bank Thermal Store
System Everest
combination unit 14 Plate
Heat Exchanger (30 ltr/min) Underfloor
Heating Coil 40mm Foam
Insulation GX-Plan
primary controls Double
Cylinder Stat Arrangement Directly
Pumped Heating Circuit Fitted
Primary Pump, 5m head All fitted
controls are wired
Thermostatic Blending Valve 1" Integral
Electro-Mechanical Timeclock Backup
Immersion Heater Cased

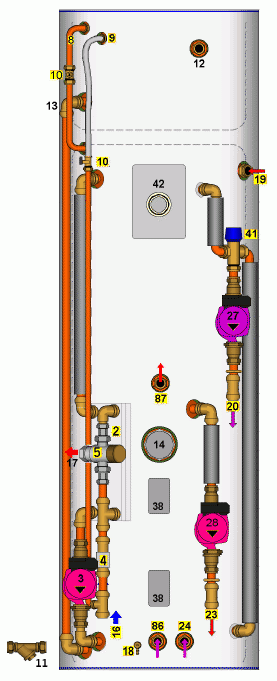

3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 8 Filling Vent 9 Feed to Ball Valve 10 Isolating Valve 11 Y-Pattern Strainer (supplied loose) 12 Overflow 13 Cold Feed / Expansion 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 20 Return to Boiler 23 Flow to Heating Circuit 24 Return from Heating Circuit 27 Boiler Pump UPS 15/60 28 Heating Circuit Pump UPS 15/60 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre with Cylinder Time Clock 86 Return to Underfloor Heating Coil 87 Hot Flow from Underfloor Heating Coil |
| ||||||||||||||||||||
|
| |||||||||||||||||||||
