Specification 4914-2

15/07/02

Heat Bank System - Stowaway advanced F+E
Manual Fill - No Overflow
28 Plate Heat Exchanger (45+ ltr/min)
Indirect , High duty primary coil
40mm Foam Insulation
Underfloor Primaries (Sealed, System Boiler)
Radiator Circuit
Primary Filling Loop
All fitted controls are wired
Thermostatic Blending Valve 1"
Low Water Level Indicator
Cased


Unit Code

 CSC-210-4914-2

Capacity [litres]

 210

Base Diameter [mm]

 450

Overall Diameter [mm]

 530

Height [mm]

 1650

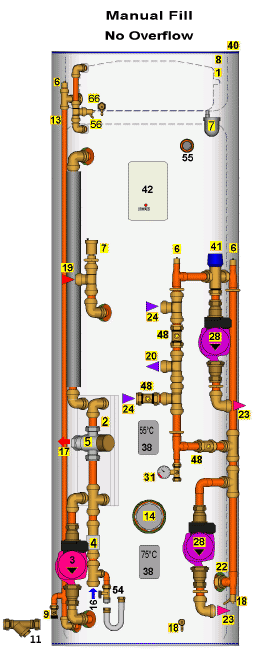

1   Integral Expansion Vessel (Unpressurised)
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
6   Manual Air Vent
7   Automatic Air Vent
8   Integral Overflow Chamber
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
13  Connection to Expansion Vessel
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
21  Return to Boiler, 22mm
22  Return from Primary Coil
23  Flow to Heating Circuit, 22mm
24  Return from Heating Circuit, 22mm
28  Under-Floor Pump UPS 15/50
31  Primary Filling Loop
39  White Coated Steel Casing
40  Tight Fitting Lid
41  Primary Blending Valve
42  Wiring Centre
48  Check Valve
55  Water Level Switch
56  Manual Water Level Test and Drain
66  Overfill Drain Cock




Under-Floor / Radiator
Stowaway Heat Bank
for Sealed System Boilers

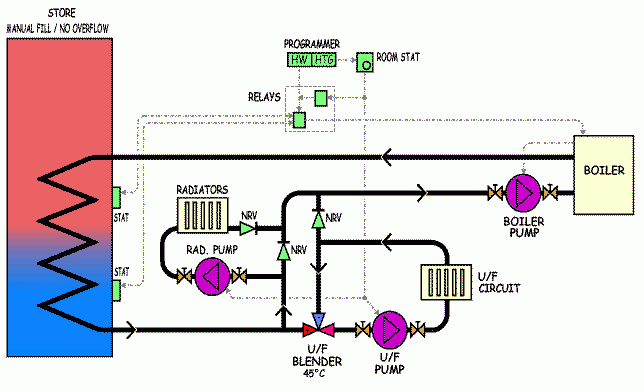

The store acts as a buffer between the boiler and the heating system. The two cylinder stats (set at 55 and 75°C) ensure that once the store has been fully heated to 75°C, the boiler will not fire again until the lower half of the store has dropped to 55°C. While the boiler is off, the heating circuit draws heat from the lower half of the store, via the coil.  This system overcomes any boiler cycling due to low loads on the heating.  The use of two pumps in this way removes the need for any motorised valves.

The unit is meant to work in conjunction with a system boiler, where the pump, and sealed system components, are fitted in the boiler.  Sealed system controls can be fitted to unit upon request.  The unit can be optionally supplied with 2/3 channel programmer and room thermostat, or programmable room thermostat, to run U/F and radiators (separately if required).
