Installation Instructions Stowaway Electric Heat Bank Thermal Store
1271-1 18/10/00
Heat Bank Thermal Store System Stowaway advanced F+E Single Heat Exchanger (30 ltr/min) Immersion Heater Relays Electrically heated 50mm Foam Insulation All fitted controls are wired Manual Fill - No Overflow Thermostatic Blending Valve 22mm Full Low Water Level Cut-Out Central Overheat Protection

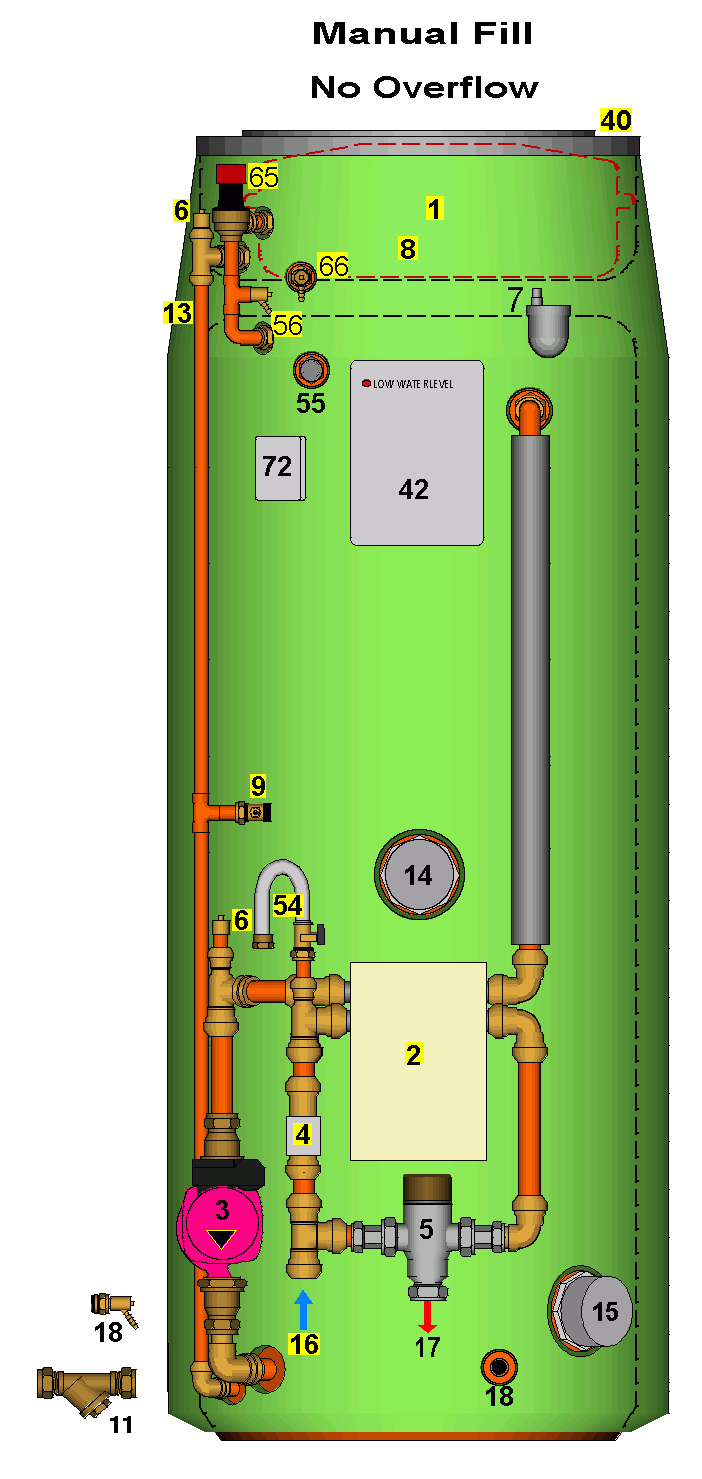

1 Integral Expansion Vessel (Unpressurised) 2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 6 Manual Air Vent 7 Automatic Air Vent 8 Integral Overflow Chamber 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 13 Connection to Expansion Vessel 14 Boost Immersion Heater 3kW Incaloy with Stat 15 Economy Immersion Heater 3kW Low Noise with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 40 Tight Fitting Lid 42 Wiring Centre 54 Filling Loop (disconnect after use) 55 Water Level Switch 56 Manual Water Level Test and Drain 65 Release Valve 66 Overfill Drain Cock 72 Manual Reset Overheat Thermostat
Heat Bank Thermal Store System
