The range of Solar Heat Bank Thermal Store units has been specifically designed to provide high performance and quality hot water and central heating services, while making the best use of modern solar technology.
The addition of solar capability to the existing Heat Bank Thermal Store system allows householder to take full advantage of free energy provided by the Sun. The Heat Bank Thermal Stores are designed for connection to virtually any type of solar panel on the market, storing thermal energy within the Heat Bank Thermal Store to provide hot water when required.
| | Where solar panels are not currently required, we believe that it is important to have the capability to add it at a later date without removal of the existing system. Therefore, we have designed the Solar Heat Bank Thermal Stores in such a way that the unit can be supplied without the solar controls, but with the coil, connections, and wiring to enable solar to be added whenever desired. The cost to the end user of installing solar is greatly reduced, making it economically viable, especially when considering the large reductions in energy bills that will result. |
Smartfit
Honeywell, has swept aside the traditional problems and hassles
associated with controls wiring and significantly reduced installation time and
costs into the bargain.
At the centre of Smartfit is a new connection box which
provides plug-in or simple 2-wire connection for all space heating and hot water
controls, completely eliminating the need for complex wiring diagrams. All
the controls have been designed for low voltage, polarity free connection.
Servicing is quicker, chances of error are reduced to the minimum, and can be
achieved with total confidence. The elegant Smartfit controller puts easy programming and diagnostics at your
fingertips. A built-in commissioning sequence and simple manual overrides
assure maximum user convenience.
The unique built-in diagnostics programme automatically indicates a fault in
the system and highlights where the fault lies, cutting out guesswork and hassle
and saving valuable time.
Extensive information, including can be obtained from the Honeywell
Web Site

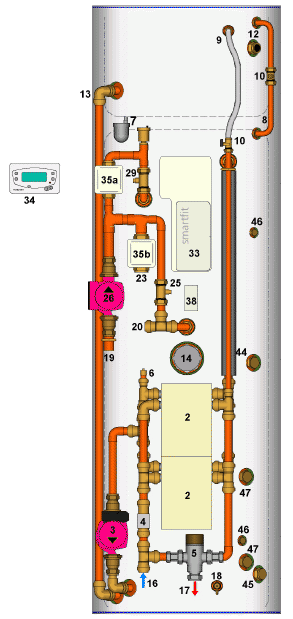

http:// honeywell1.datareturn.com/UK/homes/smartfit.htm | | The unit is fitted with two heat exchangers, and is capable of delivering 45 litres/minute @45°C (80°C storage). | | A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4]. | | It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor. | | A chemical corrosion inhibitor, such as Sentinal X100, must be added to the stored water within the cylinder. Anti-freeze should also be added where there is a possibility of prolonged exposure to sub-zero temperatures.
|
|
|
|
Heat Bank Thermal Store System
