Specification 1271-1

DEDICATED PRESSURE SYSTEMS LTD.

Telephone 01372 803 675
Fax 01372 803 678
Email dps@heatweb.com
Internet http://www.heatweb.com

The Institute of Plumbing

R/O Shops, 9-19 Manor Green Road, Epsom, Surrey KT19 8RA

	SPECIFICATION 1271 (Manual Fill)	1/6/00 Copies / revised specifications can be obtained via fax / email
	Designed for Fairview Estates Consultants: Engineering Design Consultants

450mm (18") diameter
Heat Bank Thermal Store System
Stowaway advanced F+E
Single Heat Exchanger (30 ltr/min)
Electrically heated
50mm Foam Insulation
All fitted controls are wired
Low Water Level Cut-Out

Unit Codes	SC 450 -					SC 500 -
Unit Codes	130-1271	150-1271	180-1271	210-1271	250-1271	180-1271	210-1271	250-1271
Capacity [litres]	130	150	180	210	250	180	210	250
Height	1050	1170	1360	1550	1800	1145	1300	1550
Base Diameter	450					500
Overall Diameter	550					600

All dimensions in mm.

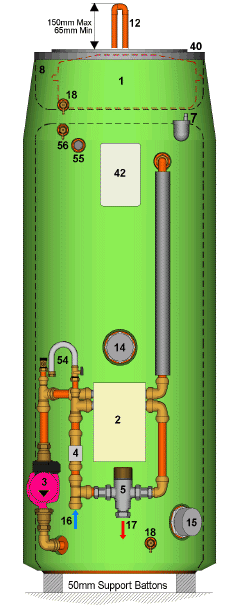

1   Integral Expansion Vessel (Unpressurised)
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve
7   Automatic Air Vent
8   Integral Overflow Chamber
12  Overflow (supplied loose)
14  Boost Immersion Heater 3kW Incaloy with Stat
15  Economy Immersion Heater 3kW Low Noise with Stat
16  Cold Mains In
17  Hot Mains Out
18  Drain Cock
40  Tight Fitting Lid
42  Wiring Centre
54  Heat Bank Thermal Store Filling Loop
55  Water Level Switch
56  Manual Bleed Valve

Notes..

The overflow [12] is to be taken a minimum distance of 65mm above the unit, to a maximum of 150mm. A U-Bend is supplied for this purpose, which can be trimmed on site to suit. The U-Bend fits into push-fit connections provided at the top-rear of the unit, 60mm from the rear. No external overflow connections are to be made, on the manual fill models.

On Auto-Fill models, the unit code finished with the suffix -A. Please refer to specification 1271A

Both Immersion Heaters [14,15], the Pump [3], Flow Switch [4], are pre-wired to the Wiring Centre [42], and are isolated from their appropriate electrical supply until the unit is full, switched via the Level Switch [55] and relays.

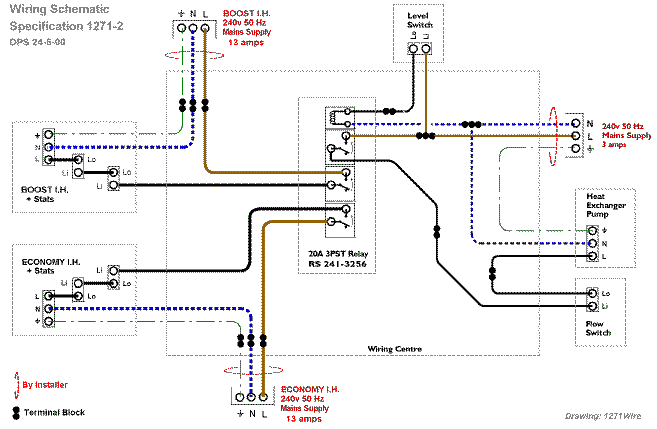

The Wiring Centre [42] provides connections to the three CLEARLY LABELED separate 240v electrical supplies:
a) 3amp supply to Flow Switch [4], Pump [3] & Water Level Cutout [55].
b) 13amp supply to upper Boost Immersion Heater (Taken from Super Switch)
c) 13amp supply to lower Economy Tariff Immersion Heater.
