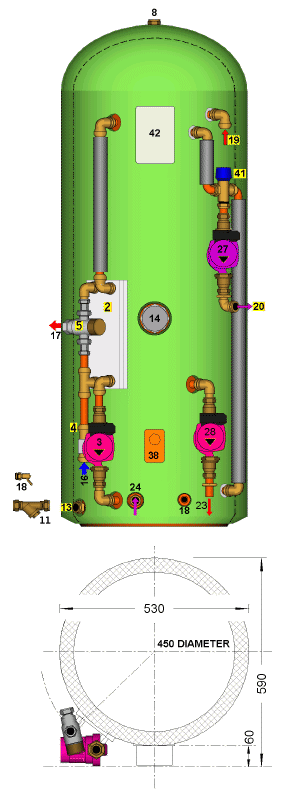

 Heat Bank Thermal Store System Xcel Cylinder 14 Plate Heat Exchanger (30 ltr/min) Directly heated from remote source 40mm Foam Insulation GX-Plan primary controls Directly Pumped Heating Circuit Fitted Primary Pump, 5m head All fitted controls are wired Thermostatic Blending Valve 22mm Backup Immersion Heater
2 Plate Heat Exchanger |
|
|||||||||||||||
|
The GXV Xcel a superb all-round performance system, originally designed as a compact, high output hot water and heating system for council properties. To obtain 100% useful input from the boiler, the store
is heated directly by the boiler - no coils. A feed and expansion tank must be
fitted above the highest point in the primary system. The main advantages of the system are...
No Motorised Valves for either hot water or heating - more reliable & easier
to service.
Very rapid recovery of store - hot water in under 3 minutes from cold.
Large volumes of hot water from a small store.
Maintains condensing boilers in condensing mode.
Ability to bring central heating up to temperature extremely quickly (store
recovered).
Store acts as an ideal air separator. |
The Valve is adjustable from 27°C to 67°C, and has a lockable head. |
| The unit is fitted with one heat exchanger, capable of delivering 30 litres/minute @45°C (80°C
storage). The graphs shown the domestic hot water output that can be achieved for various storage temperatures.
|
| A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4]. |
| It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor. |
| It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store. Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions. |
|
Please accept our quotation as follows the following:
|
||||||||||||
The unit is fitted with a Mixcall III Thermostatic Blending Valve, to control
the hot water temperature, and prevent scalding. The graph shows the pressure drop across the valve for various hot water flow rates.
