 Heat Bank Thermal Store System
Everest combination unit
Twin heat exchangers (45 ltr/min)
Indirect
35mm Foam Insulation
High duty primary coil
Y-Plan primary controls
All fitted controls are wired
Backup Immersion Heater
Fitted Primary Pump
Thermostatic Blending Valve 22mm
|
Unit Code |
1685.2.1 | 1685.2.2 | 1685.2.3 | 1685.2.4 | 1685.2.5 |
|
Capacity [litres] |
130 | 150 | 180 | 210 | 250 |
|
Base Diameter [mm] |
450 | 450 | 450 | 450 | 450 |
|
Overall Diameter [mm] |
520 | 520 | 520 | 520 | 520 |
|
Height [mm] |
1190 | 1330 | 1510 | 1720 | 1980 |
UID: EHB450-IND-HX21-F35-W-IH-PP-HDC-M22-YP

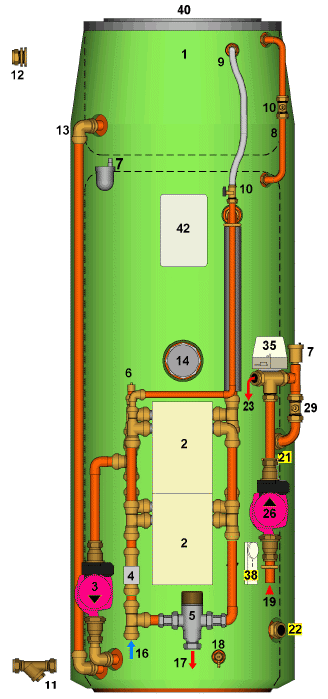

1 Integral Feed & Expansion Tank
2 Plate Heat Exchanger
3 Heat Exchanger Pump
4 Flow Switch
5 Thermostatic Blending Valve, Mixcall III
6 Manual Air Vent
7 Automatic Air Vent
9 Feed to Ball Valve
10 Isolating Valve
11 Y-Pattern Strainer (supplied loose)
12 Overflow (supplied loose)
13 Cold Feed / Expansion
14 Immersion Heater 3kW Incaloy with Stat
16 Cold Mains In, 22mm
17 Hot Mains Out, 22mm
18 Drain Cock
19 Flow From Boiler
21 Flow to Primary Coil
22 Return from Primary Coil
23 Flow to Heating Circuit
26 Primary Pump UPS 15/50
29 Primary Coil Balancing Valve
35 Three Port Mid Position Valve
38 Cylinder Thermostat Danfoss ATC
40 Tight Fitting Lid
42 Wiring Centre
|
|
