Heat Bank Thermal Store SYSTEMS
System F Heat Bank Thermal Stores
Copyright DPS 24/08/00
Heat Bank Thermal Store System
HBPP System F
Everest combination unit
Twin heat exchangers (45 ltr/min)
Indirect
35mm Foam Insulation
High duty primary coil
S-Plan primary controls
Fitted programmer
Fitted Primary Pump, 6m head
All fitted controls are wired
Thermostatic Blending Valve 1''
28mm Primaries
Backup Immersion Heater
Primary Feed from Store

Capacity [litres]

 130150180210250

Base Diameter [mm]

 450450450450450

Overall Diameter [mm]

 520520520520520

Height [mm]

 11901330151017201980

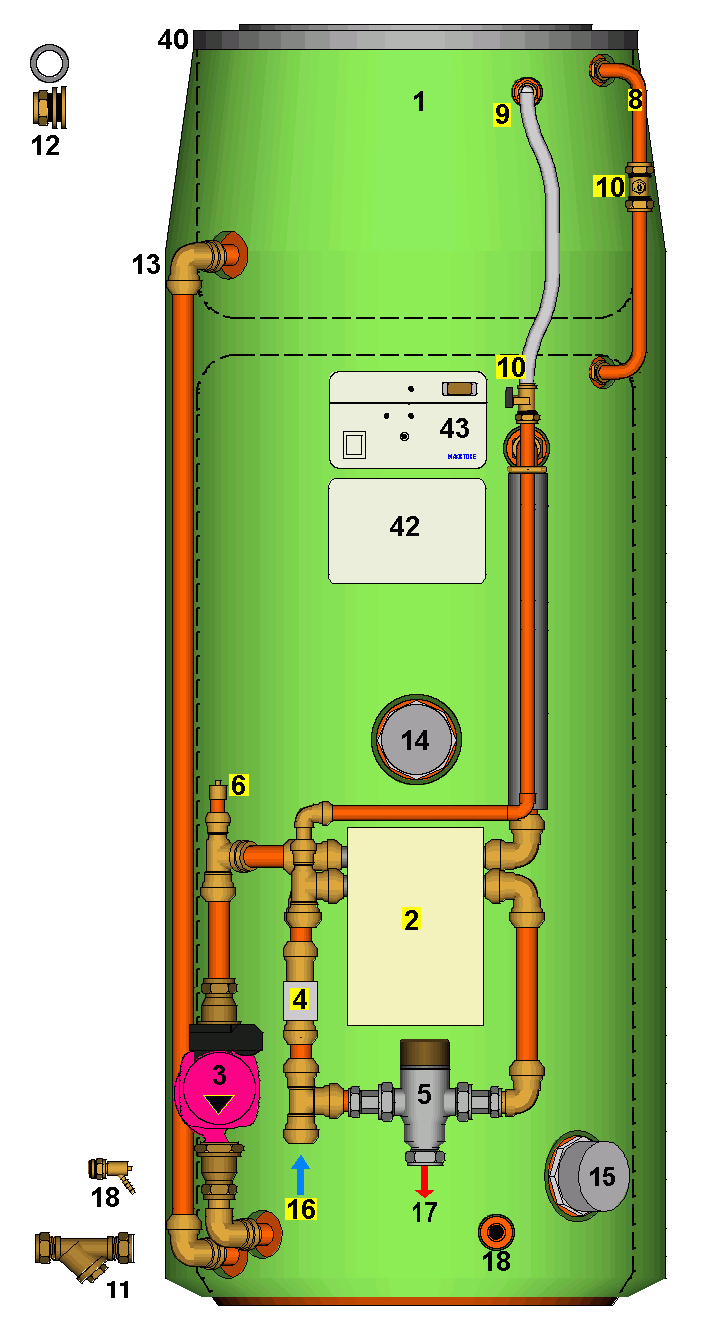

1   Integral Feed & Expansion Tank
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Aquamix 1"
6   Manual Air Vent
7   Automatic Air Vent
8   Filling Vent
9   Feed to Ball Valve
10  Isolating Valve
11  Y-Pattern Strainer (supplied loose)
12  Overflow (supplied loose)
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler 28mm
21  Flow to Primary Coil
22  Return from Primary Coil
23  Flow to Heating 28mm
25  By-Pass Connection 15mm
26  Primary Pump UPS 15/60
29  Primary Coil Balancing Valve
31  Primary Feed & Expansion Connection
33  Programmer Danfoss CP715
34  Room Thermostat Danfoss RMT230 (supplied loose)
35a Two Port Zone Valve - Hot Water 22mm
35b Two Port Zone Valve - Heating 28mm
38  Cylinder Thermostat Danfoss ATC
40  Tight Fitting Lid
42  Wiring Centre


Notes..
The unit is fitted with two heat exchangers, and is capable of delivering 45 litres/minute @45°C (80°C storage).
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. Label the unit as protected with the label provided.
A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions. Please note, however, that adding anti-freeze into the store will not protect mains water pipework from freezing - these should be protected seperately (either by draining or by the application of trace heating).
