SPECIFICATION 1793-1
29/08/00
Heat Bank Thermal Store System
Stowaway advanced F+E
Manual Fill - No Overflow
Single Heat Exchanger (30 ltr/min)
Electrically heated
Immersion Heater Controller
Immersion Heater Relay Box
50mm Foam Insulation
All fitted controls are wired
Thermostatic Blending Valve 22mm
Low Water Level Cut-Out
Central Overheat Protection

Unit Code

 1793.1.11793.1.2

Capacity [litres]

 150210

Base Diameter [mm]

 450450

Overall Diameter [mm]

 550550

Height [mm]

 11701550

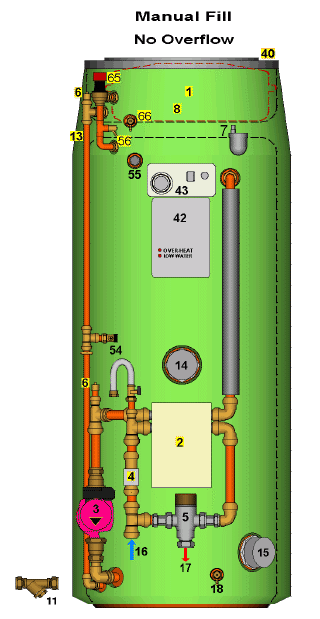

1   Integral Expansion Vessel (Unpressurised)
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
6   Manual Air Vent
7   Automatic Air Vent
8   Integral Overflow Chamber
11  Y-Pattern Strainer (supplied loose)
13  Connection to Expansion Vessel
14  Boost Immersion Heater 3kW Incaloy with Stat
15  Economy Immersion Heater 3kW Low Noise with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
40  Tight Fitting Lid
42  Wiring Centre
43  Grasslin QE7 Immersion Heater Controller
54  Filling Loop
55  Water Level Switch
56  Manual Bleed Valve
65  Release Valve
66  Overfill Drain Cock


Both Immersion Heaters [14,15], the Pump [3], Flow Switch [4], are pre-wired to the Wiring Centre [42], and are isolated from their appropriate electrical supply until the unit is full, switched via the Level Switch [55] and relays.
The Bleed Valve [56] is to be OPEN during filling to provide an indication of when the unit is full, and to remove excess water. The unit is fitted with an Integral Overflow Chamber [8], which traps small volumes of water discharged as a result of overfilling. Water in the chamber can be drained off via the Overfill Drain Cock [66]. The unit MUST be watched during filling as excessive overfilling will result in over-spill onto the floor.
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. Label the unit as protected with the label provided.
A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions -  mains water pipework  should be protected separately (either by draining or by the application of trace heating).
