Johnson & Starley Ltd.
Rhosili Road, Brackmills, Northampton NN4 7LZ
Tel: 01604 762881   Fax: 01604 767408

Heat Bank Thermal Store SYSTEMS
Specification 1813-2
Copyright DPS 07/09/00
Heat Bank Thermal Store System
HBPP System A
Everest combination unit
Single Heat Exchanger (30 ltr/min)
Immersion Heater Controller
Electrically heated
50mm Foam Insulation
All fitted controls are wired
Manual Fill - No Overflow
Thermostatic Blending Valve 22mm
Basic Low Water Level Cut-Out

Unit Code

 HBPP-150-A1813

Capacity [litres]

 150

Base Diameter [mm]

 450

Overall Diameter [mm]

 550

Height [mm]

 1330

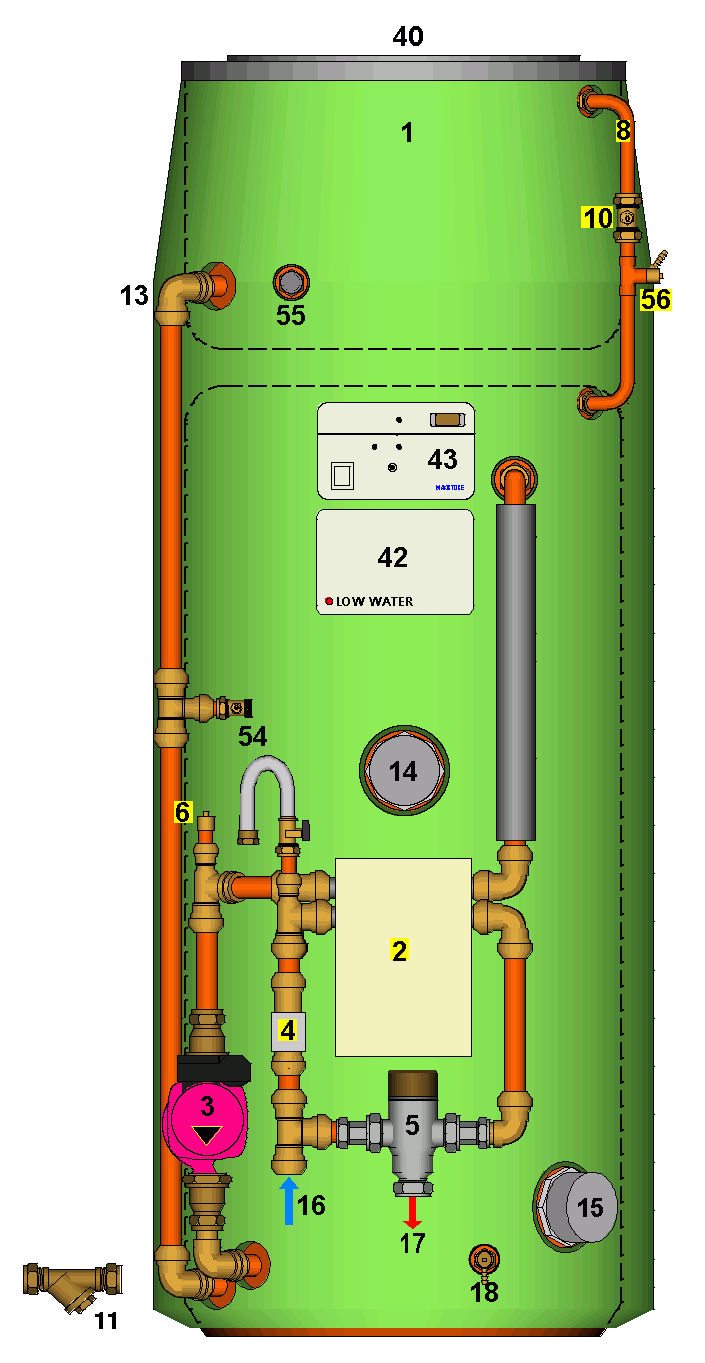

1   Integral Feed & Expansion Tank
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
8   Filling Vent
10  Isolating Valve
11  Y-Pattern Strainer (supplied loose)
13  Cold Feed / Expansion
14  Boost Immersion Heater 3kW Incaloy with Stat
15  Economy Immersion Heater 3kW Low Noise with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
40  Tight Fitting Lid
42  Wiring Centre
43  Horstmann Electronic 7 Immersion Heater Controller
54  Filling Loop
55  Water Level Switch
56  Manual Water Level Test and Drain


Notes..
The Wiring Centre [42] is fitted with a neon which indicates when the unit needs re-filling. It is also fitted with a 5 amp relay to prevent the Heat Exchanger Pump [3] from activating - there will be no hot water available until the unit is topped up manually, using the filling loop [54].
The Bleed Valve [56] is to be used during filling to provide an indication of when the unit is full, and to remove excess water.
The Electronic 7 Controller is not suitable for a Dual Supply Tariff. Other controllers available to suit.
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. Label the unit as protected with the label provided.
A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
