Heat Bank Thermal Store SYSTEMS
Specification 1820-1
Copyright DPS 08/09/00
Heat Bank Thermal Store System
Xcel unit for connection to remote F+E
Single Heat Exchanger (30 ltr/min)
Directly heated from remote source
35mm Foam Insulation
GX-Plan primary controls
Directly Pumped Heating Circuit
All fitted controls are wired
Thermostatic Blending Valve 22mm
Backup Immersion Heater

Unit Code

 1820.1.1

Capacity [litres]

 180

Base Diameter [mm]

 450

Overall Diameter [mm]

 520

Height [mm]

 1350

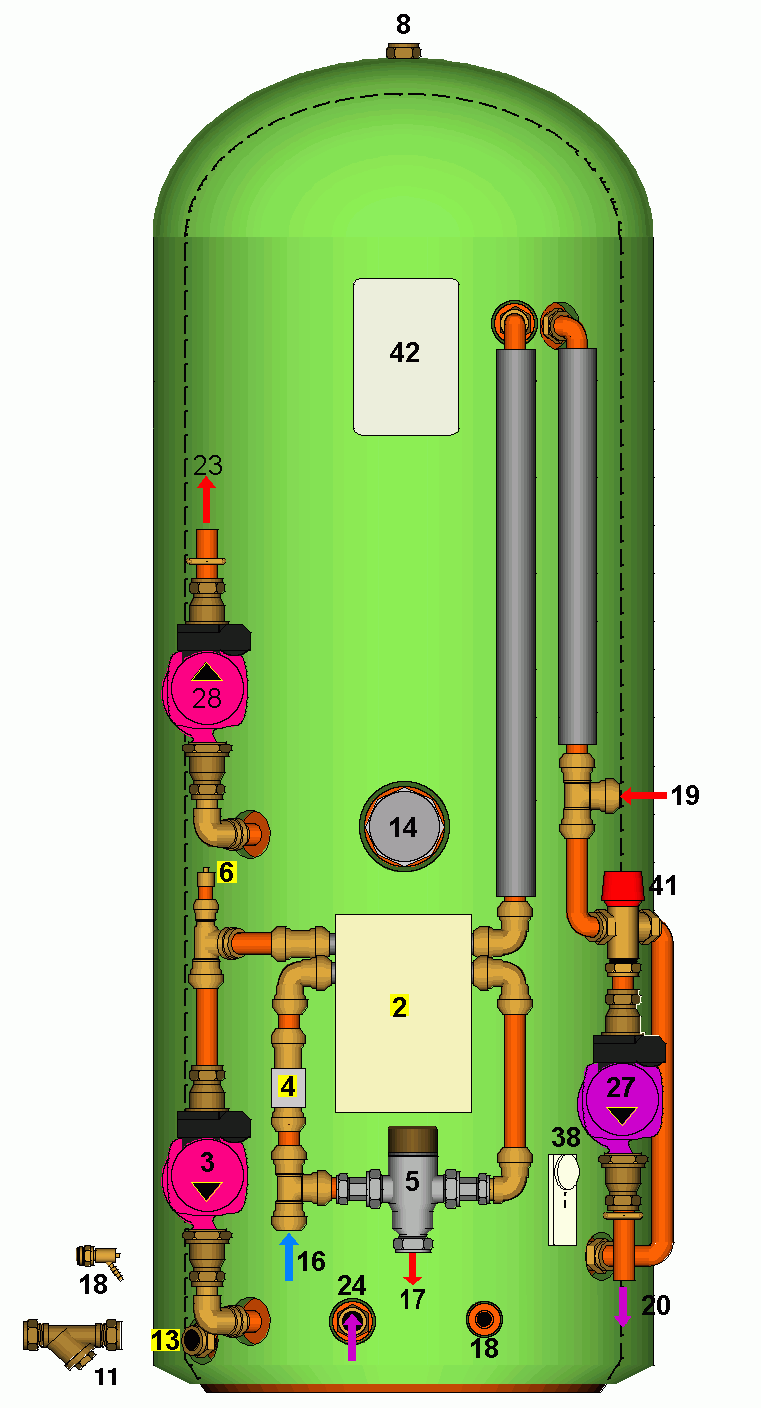

2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
8   Vent
11  Y-Pattern Strainer (supplied loose)
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler
20  Return to Boiler
23  Flow to Heating Circuit
24  Return from Heating Circuit
27  Boiler Pump UPS 15/50
28  Heating Circuit Pump UPS 15/60
38  Cylinder Immersion Thermostat Danfoss ITC
41  Primary Blending Valve
42  Wiring Centre


Notes..
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. Label the unit as protected with the label provided.
A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions. Please note, however, that adding anti-freeze into the store will not protect mains water pipework from freezing - these should be protected seperately (either by draining or by the application of trace heating).
