SPECIFICATION 1865-1

18/09/00
Copies / revised specifications
can be obtained via fax / email
Designed for Mr. Thornley
Heat Bank Thermal Store System
Everest combination unit
Twin heat exchangers (45 ltr/min)
Indirect
35mm Foam Insulation
High duty primary coil
Hot Water Motorised Valve
All fitted controls are wired
Backup Immersion Heater
Flow Switch By-Pass

Unit Code

 1865.1.1

Capacity [litres]

 300

Base Diameter [mm]

 500

Overall Diameter [mm]

 570

Height [mm]

 1900

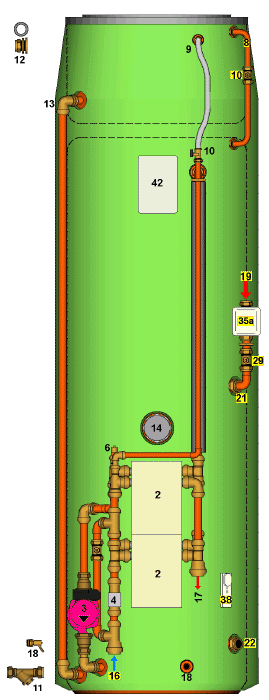

1   Integral Feed & Expansion Tank
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
6   Manual Air Vent
8   Filling Vent
9   Feed to Ball Valve
10  Isolating Valve
11  Y-Pattern Strainer (supplied loose)
12  Overflow (supplied loose)
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler
21  Flow to Primary Coil
22  Return from Primary Coil
25a Store Motorised Valve
29  Balancing Valve
38  Cylinder Thermostat Danfoss ATC
40  Tight Fitting Lid
42  Wiring Centre


Notes..
The Flow Switch is fitted with a 22mm By-Pass. This can be used to reduce the mains pressure drop across the unit. The valve should be balanced so that the Heat Exchanger Pump [3] switches on at the minimum hot water flow rate.
The unit is fitted with two heat exchangers, and is capable of delivering 45 litres/minute @45°C (80°C storage).
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
