| The GX recovery system takes full
advantage of the boiler output, providing exceptional recovery times, and
increased volumes of hot water. Hot water is typically available
within 5 minutes from cold start. The system allows the return
temperature to the boiler to be set, maximising the efficiency of
condensing boilers. | | The
system does not use any motorised valves, either for hot water of heating,
and instead uses two primary pumps. This increasing reliability
while making servicing easier. | | The Flow Switch is fitted with a 22mm By-Pass. This can be used to reduce the mains pressure drop
across the unit. The valve should be balanced so that the Heat Exchanger Pump [3] switches on at the minimum hot water flow rate. |  The
RX1 room stat communicates with the TP5E RF
receiver (fitted and wired to the Heat Bank Thermal Store) using a digital radio signal. The room stat runs for two years of two standard AA batteries, requires absolutely no wiring, and can be easy positioned (or re-positioned) to suit.
Another huge benefit, is the ability of the room stat to heat the property to different temperatures, at different times. This allows large energy savings to be made, while increasing comfort levels.
|
|

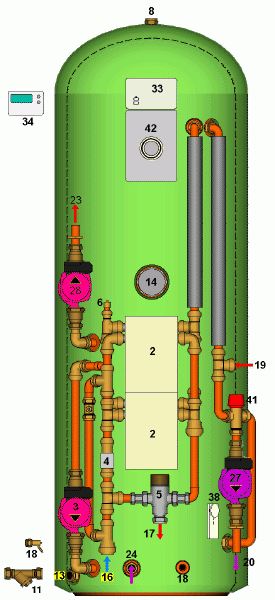

Heat Bank Thermal Store System
