Heat Bank Thermal Store System
Xcel unit for connection to remote F+E
Twin heat exchangers (45 ltr/min)
Directly heated from remote source
40mm Foam Insulation
GX-Plan primary controls
Directly Pumped Heating Circuit
All fitted controls are wired
Thermostatic Blending Valve 1''
Flow Switch By-Pass
Heating Override Thermostat + Relays
Secondary Return Pump



Unit Code

HB-300-3191

Capacity [litres]

300

Base Diameter [mm]

500

Overall Diameter [mm]

580

Height [mm]

1600

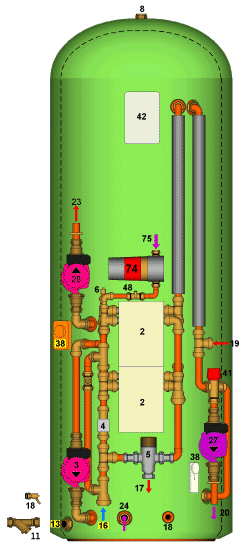

2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Aquamix 1"
6   Manual Air Vent
8   Vent
11  Y-Pattern Strainer (supplied loose)
13  Cold Feed / Expansion
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler
20  Return to Boiler
23  Flow to Heating Circuit
24  Return from Heating Circuit
27  Boiler Pump UPS 15/50
28  Heating Circuit Pump UPS 15/60
38  Cylinder Immersion Thermostat
38  Cylinder Thermostat
41  Primary Blending Valve
42  Wiring Centre
48  Check Valve
74  UP 15 40-P Bronze Secondary Circulator
75  Secondary Return


The GXV Xcel a superb all-round performance system, originally designed as a compact, high output hot water and heating system for council properties. To obtain 100% useful input from the boiler, the store is heated directly by the boiler - no coils. A feed and expansion tank must be fitted above the highest point in the primary system. The main advantages of the system are...
No Motorised Valves for either hot water or heating - more reliable & easier to service.
Very rapid recovery of store - hot water in under 3 minutes from cold.
Large volumes of hot water from a small store.
Maintains condensing boilers in condensing mode.
Ability to bring central heating up to temperature extremely quickly (store recovered).
Store acts as an ideal air separator.
The Flow Switch is fitted with a 22mm By-Pass. This can be used to reduce the mains pressure drop accross the unit. The valve should be balanced so that the Heat Exchanger Pump [3] switches on at the minimum hot water flow rate.
The unit is fitted with two heat exchangers, and is capable of delivering 45 litres/minute @45°C (80°C storage).
A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
