SPECIFICATION 3302-1
Stowaway Heat Bank Thermal Store with Vokera Mynute 20SE Boiler

11/04/01
Copies / revised specifications
can be obtained via fax / email

Heat Bank Thermal Store System
Stowaway advanced F+E
14 Plate Heat Exchanger (30 ltr/min)
Indirect
35mm Foam Insulation
High duty primary coil
S-Plan primary controls
RX1 Programmable Room Thermostat
All fitted controls are wired
Manual Fill - No Overflow
Thermostatic Blending Valve 22mm
28mm Primaries
Backup Immersion Heater
Low Water Level Indicator
PCB Wiring Centre
Cased
Vokera Mynute Boiler
Mynute 28SE: 67,576 - 95,560 Btu/h



Unit Code

SC-180-3302-1

Capacity [litres]

180

Base Diameter [mm]

500

Overall Diameter [mm]

570

Height [mm]

1400

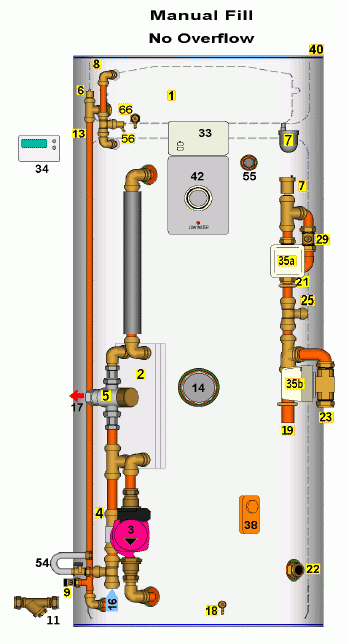

1   Integral Expansion Vessel (Unpressurised)
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, Mixcall III
6   Manual Air Vent
7   Automatic Air Vent
8   Integral Overflow Chamber
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
13  Connection to Expansion Vessel
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler 28mm
21  Flow to Primary Coil
22  Return from Primary Coil
23  Flow to Heating 28mm
25  By-Pass Connection 22mm
29  Primary Coil Balancing Valve
33  Danfoss Radio Reciever
35a Two Port Zone Valve - Hot Water 22mm
35b Two Port Zone Valve - Heating 28mm
38  Cylinder Thermostat (with Immersion Pocket)
40  Tight Fitting Lid
42  Wiring Centre
54  Filling Loop (disconnect after use)
55  Water Level Switch
56  Manual Water Level Test and Drain
66  Overfill Drain Cock



The DanfossTP5E RF room stat communicates with the RX1 receiver (fitted and wired to the Heat Bank Thermal Store) using a digital radio signal. The room stat runs for two years of two standard AA batteries, requires absolutely no wiring, and can be easy positioned (or re-positioned) to suit. Another huge benefit, is the ability of the room stat to heat the property to different temperatures, at different times. This allows large energy savings to be made, while increasing comfort levels.



The unit is fitted with a Mixcall III Thermostatic Blending Valve, to control the hot water temperature, and prevent scalding.  The graph shows the pressure drop across the valve for various hot water flow rates.

The Valve is adjustable from 27°C to 67°C, and has a lockable head.

The unit is fitted with an Integral Overflow Chamber [8], which traps small volumes of water discharged as a result of overfilling. Water in the chamber can be drained off via the Overfill Drain Cock [66]. The unit MUST be watched during filling as excessive overfilling will result in over-spill onto the floor.
The unit is fitted with one heat exchanger, capable of delivering 30 litres/minute @45°C (80°C storage). The graphs shown the domestic hot water output that can be achieved for various storage temperatures.



A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.

The Vokera Mynute is compact in design when compared to most traditional wall hung boilers. The big advantage is that all the associated components needed for a traditional system are contained within the boiler case. The Mynute covers outputs from 5.6 to 28 kW.

  Expansion vessel, pump, safety valve built in.
  Installation time reduced - along with materials required - resulting in substantial cost saving.
  Simplified servicing and maintenance
  Frees loft space of feed and expansi

Please accept our quotation as follows the following:

Heat Bank Thermal Store System - Stowaway advanced F+E
As per specification 3302-1, 11-04-01
Unit IDDescription

Price

SC-180-3302-1180 litres, 500 x 1400mm£ 1880.50
Vokera Boiler Pack Discount- £ 200
£ 1680.50

Prices do not include VAT or Delivery.
Ready for collection 3-4 weeks from receipt of order.
Terms: 30 days from date of collection / dispatch. (account permitting)
Credit Cards accepted.
