Heat Bank Thermal Store System
Stowaway advanced F+E
Single Heat Exchanger (30 ltr/min)
Immersion Heater Controller
Electrically heated
40mm Foam Insulation
All fitted controls are wired
Manual Fill - No Overflow
Thermostatic Blending Valve 22mm
Full Low Water Level Cut-Out
Central Overheat Protection
Cased



Unit Code

SC-130-3329-2SC-150-3329-2SC-180-3329-2SC-210-3329-2SC-250-3329-2

Capacity [litres]

130150180210250

Base Diameter [mm]

450450450450450

Overall Diameter [mm]

530530530530530

Height [mm]

10501170136015501800

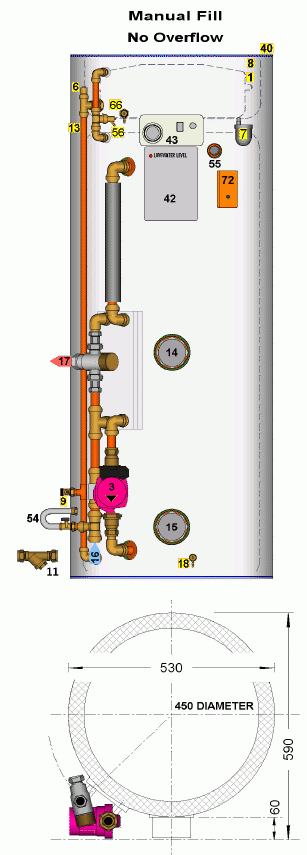

1   Integral Expansion Vessel (Unpressurised)
3   Heat Exchanger Pump
6   Manual Air Vent
7   Automatic Air Vent
8   Integral Overflow Chamber
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
13  Connection to Expansion Vessel
14  Boost Immersion Heater 3kW Incaloy with Stat
15  Economy Immersion Heater 3kW Low Noise with Stat
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
39  White Coated Steel Casing
40  Tight Fitting Lid
42  Wiring Centre
43  Grasslin QE7 Immersion Heater Controller
54  Filling Loop (disconnect after use)
55  Water Level Switch
56  Manual Water Level Test and Drain
66  Overfill Drain Cock
72  Manual Reset Overheat Thermostat


Both Immersion Heaters [14,15], the Pump [3], Flow Switch [4], are pre-wired to the Wiring Centre [42], and are isolated from their appropriate electrical supply until the unit is full, switched via the Level Switch [55] and relays.

The unit is fitted with a Mixcall III Thermostatic Blending Valve, to control the hot water temperature, and prevent scalding.  The graph shows the pressure drop across the valve for various hot water flow rates.

The Valve is adjustable from 27°C to 67°C, and has a lockable head.

The unit is fitted with an Integral Overflow Chamber [8], which traps small volumes of water discharged as a result of overfilling. Water in the chamber can be drained off via the Overfill Drain Cock [66]. The unit MUST be watched during filling as excessive overfilling will result in over-spill onto the floor.
The unit is fitted with one heat exchanger, capable of delivering 30 litres/minute @45°C (80°C storage). The graphs shown the domestic hot water output that can be achieved for various storage temperatures.



A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
Heat Bank Thermal Store System, Stowaway advanced F+E
As per specification 3329-2, 28-02-01
Unit IDSizeList Price
SC-130-3329-2130 litres, 450 x 1050mm£ 823.69
SC-150-3329-2150 litres, 450 x 1170mm£ 832.29
SC-180-3329-2180 litres, 450 x 1360mm£ 872.42
SC-210-3329-2210 litres, 450 x 1550mm£ 887.74
SC-250-3329-2250 litres, 450 x 1800mm£ 921.51
