210 litre Grade 3 Cylinder (max 1 bar) Indirect
BS 28mm Coil Finned 6m
Solar Coil
40mm Foam Insulation
Danfoss Y-Plan Controls
PCB Primary Wiring Centre
Fitted Primary Pump, 5m head Fitted Solar Controls
Resol Delta Pro Solar
Controller All fitted controls are wired
HWS Thermostatic Blending Valve Backup Immersion Heater Cased
Unit Code |
ECON-3755-1 |
Capacity [litres] |
210 |
Base Diameter [mm] |
450 |
Overall Diameter [mm] |
520 |
Height [mm] |
1550 |

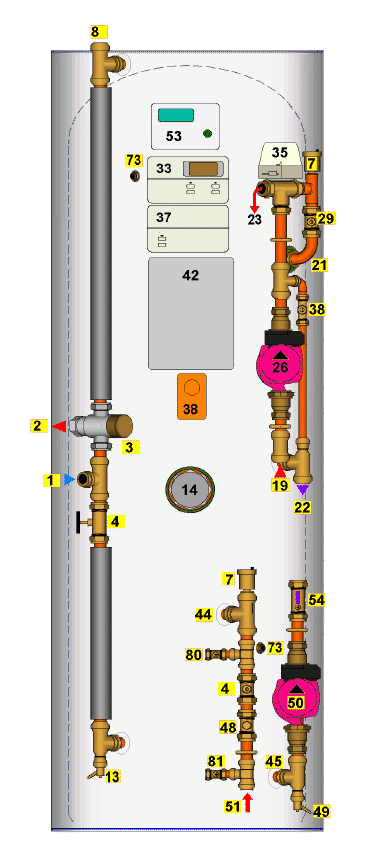

1 Cold Feed 22mm
2 Hot Water Services 22mm
3 HWS Thermostatic Blending Valve
4 Isolating Valve 7 Automatic Air Vent 8 Vent
13 Drain Cock 14 Immersion Heater 3kW Incaloy with Stat 19 Flow From Boiler 21 Flow to Primary Coil 22 Return
to Boiler 23 Flow to Heating Circuit 26 Primary Pump UPS 15/50 29 Primary Coil Balancing Valve 33
Danfoss Programmer CP715
38 Danfoss Cylinder Thermostat
35 Danfoss Three Port Mid Position Valve
36 Danfoss RF Radio Rom Thermostat 37 Danfoss RX1 RF Receiver
Unit
38 Automatic By-Pass Valve 39 White Coated Steel Casing 42 Wiring Centre 48 Check Valve 49 Solar Drain Point 50 Solar Pump
UPS 15/50 51 Flow from Solar Panels 52 Return to Solar Panels 53 Resol Solar Controller
54 Flow Meter 73 Sensor Points 80 Solar Filling Point 81 Dosing Pot Connection
|
|
