 Heat Bank Thermal Store System
Stowaway advanced F+E
14 Plate Heat Exchanger (30 ltr/min)
Electrically heated
Immersion Heater Relays
40mm Foam Insulation
All fitted controls are wired
Manual Fill - No Overflow
Thermostatic Blending Valve 22mm
Full Low Water Level Cut-Out
Central Overheat Protection
Cased
|
Unit Code |
SC-130-ELC | SC-150-ELC | SC-180-ELC | SC-210-ELC | SC-250-ELC |
|
Capacity [litres] |
130 | 150 | 180 | 210 | 250 |
|
Base Diameter [mm] |
450 | 450 | 450 | 450 | 450 |
|
Overall Diameter [mm] |
550 | 550 | 550 | 550 | 550 |
|
Height [mm] |
1050 | 1170 | 1360 | 1550 | 1800 |

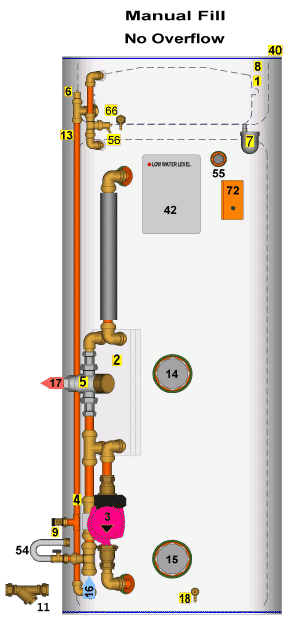

1 Integral Expansion Vessel (Unpressurised)
2 Plate Heat Exchanger
3 Heat Exchanger Pump
4 Flow Switch
5 Thermostatic Blending Valve, Mixcall III
6 Manual Air Vent
7 Automatic Air Vent
8 Integral Overflow Chamber
9 Store Filling Point
11 Y-Pattern Strainer (supplied loose)
13 Connection to Expansion Vessel
14 Boost Immersion Heater 3kW Incaloy with Stat
15 Economy Immersion Heater 3kW Low Noise with Stat
16 Cold Mains In, 22mm
17 Hot Mains Out, 22mm
18 Drain Cock
39 White Coated Steel Casing
40 Tight Fitting Lid
42 Wiring Centre with 3 x 3m Power Leads
54 Filling Loop (disconnect after use)
55 Water Level Switch
56 Manual Water Level Test and Drain
66 Overfill Drain Cock
72 Manual Reset Overheat Thermostat
|
|
