Specification 1640

Page...  2  3

1500 litres storage, consisting of 3 x 500 litre horizontal cylinders
5 Bar test pressure
140kW plate heat exchanger for recovery
Rapid recovery - stores heated from top down
Advanced Control System
Modular design

The system has been designed to provide large volumes of hot water for commercial applications where space is restricted.  The use of three separate horizontal stores allows the system to be moved in sections into place with minimal access requirements, and then assembled in situ. All controls are located at one end, making  positioning of the system and access that bit easier.

The use of a plate heat exchanger (instead of heat exchangers inside each store) allows rapid and regulated recovery of the stores. The heat exchanger can be easily disassembled for cleaning, without disconnection from the system, and additional plates can be added should extra output ever be required.

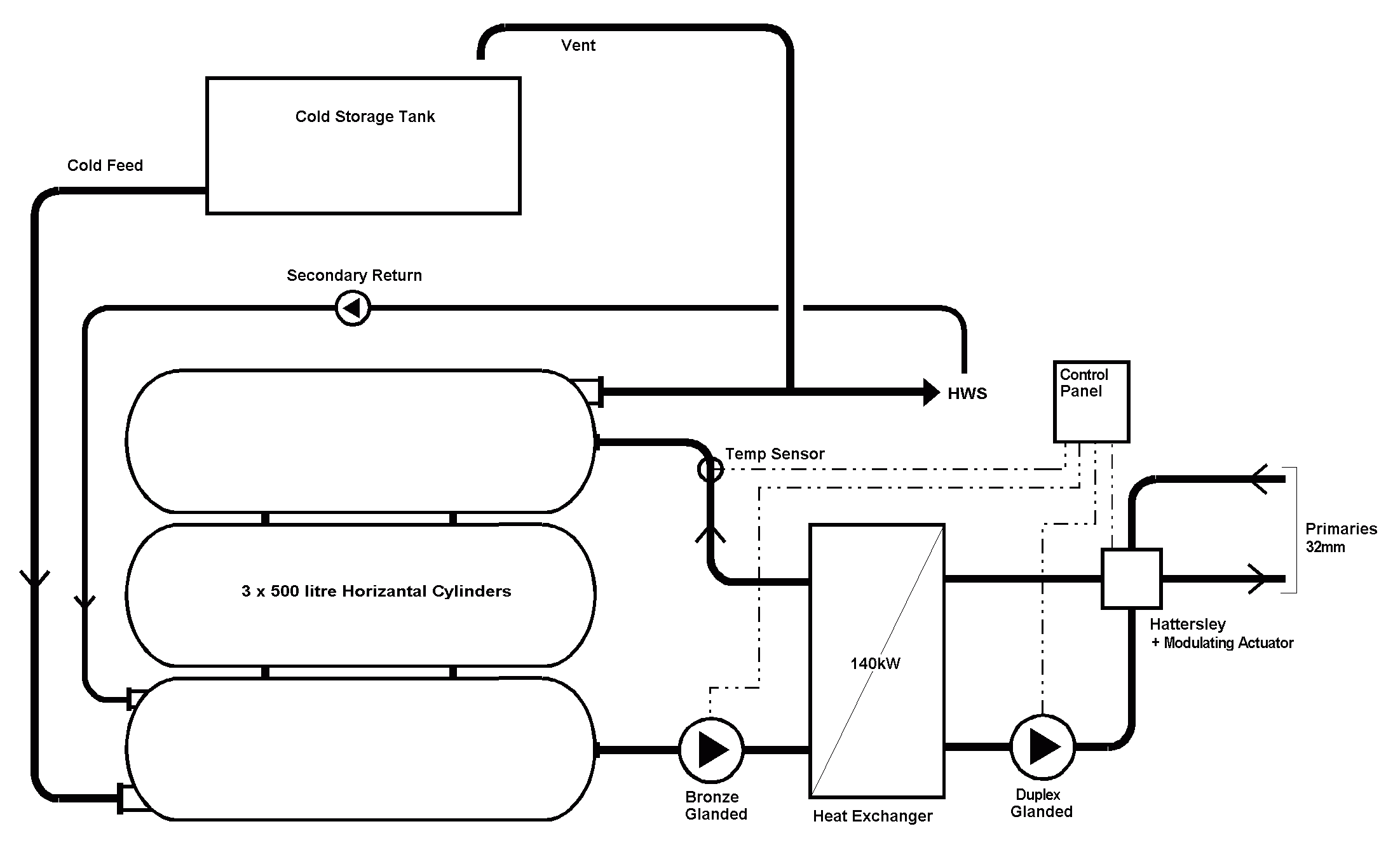

Schematic layout of system
