Johnson & Starley Ltd. Heat Bank Thermal Store Units Installation, Commissioning, Servicing, & Users Instructions
HEAT
Bank Thermal Store 2000
Publication ZZ 07/08/00 Copyright DPS 156-1
Heat Bank Thermal Store System Heat Bank Thermal Store 2000 Everest combination unit Single Heat Exchanger (30 ltr/min) Electrically heated 40mm Foam Insulation Directly Pumped Heating Circuit All fitted controls are wired Thermostatic Blending Valve 22mm Low Water Level Cut-Out Central Overheat Protection Solenoid Filling Valve Central Heating Timer & Room Stat Cased

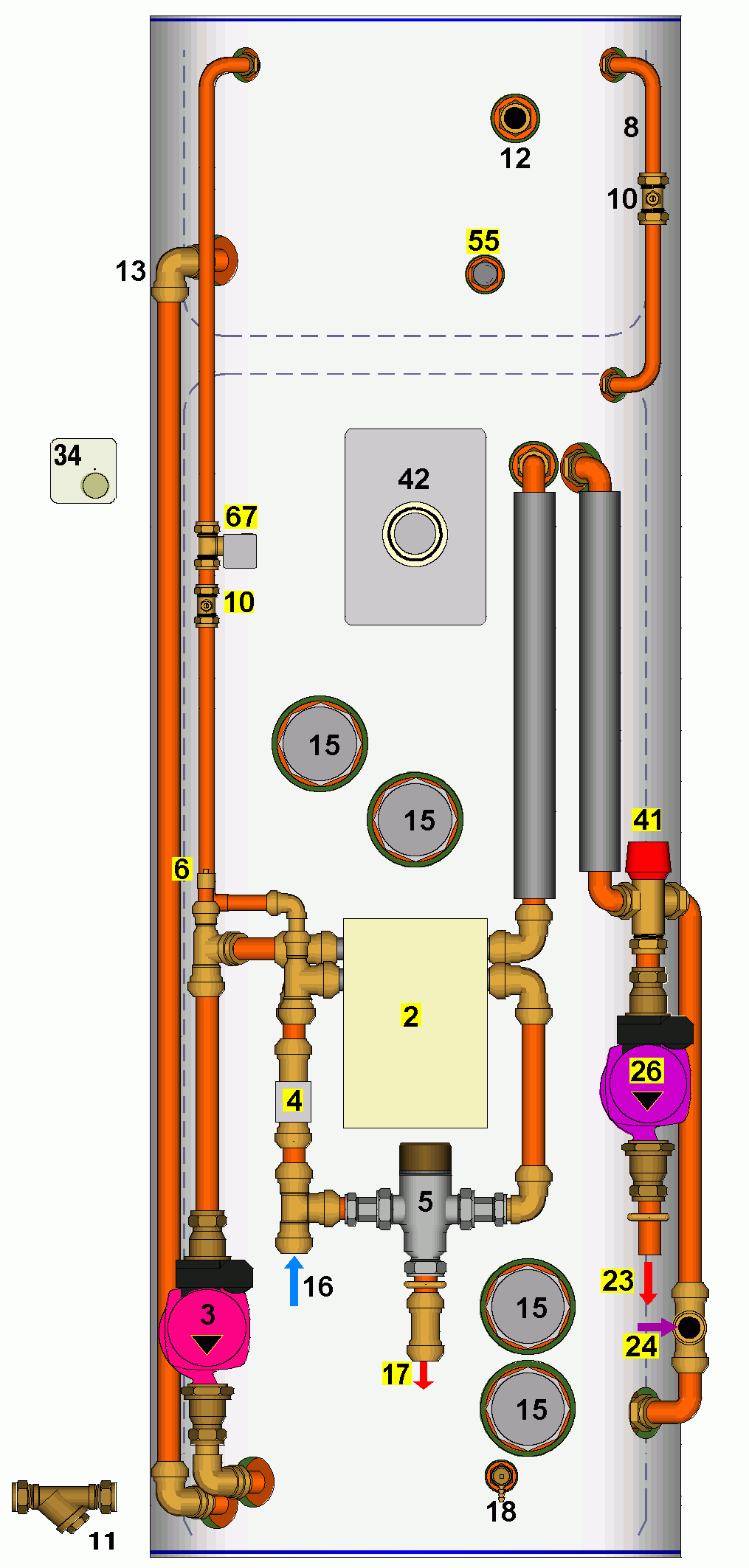

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 8 Filling Vent 10 Isolating Valve 11 Y-Pattern Strainer (supplied loose) 12 Overflow 13 Cold Feed / Expansion 15 Economy Immersion Heater 3kW Low Noise with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 23 Flow to Heating Circuit 24 Return from Heating Circuit 26 Primary Pump UPS 15/50 34 Room Thermostat Danfoss RMT230 (supplied loose) 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre with Central Heating Clock 55 Water Level Switch 67 Solenoid Valve 5.5 l/min
Heat Bank Thermal Store System
