Cold Mains In.
| 4 CONNECTIONS TO Heat Bank Thermal Store. |
| 4.1 Cold Mains In.
|
| 4.2 Hot Water Out. |
| 4.3 Flow to Heating Circuit |
| 4.4 Return from Heating Circuit |
| 4.5 Overflow, 22mm Copper IMPORTANT: PLASTIC PIPE SHOULD NOT BE USED. |
| 5 WIRING |
| 5.1 All cable should be Heat Resistant, and suitable for 240V 50Hz supply. |

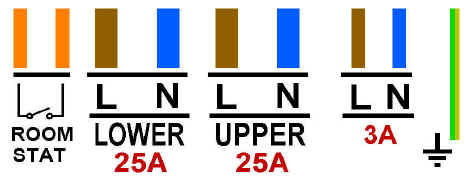

| 5.2 Wire the Room Thermostat [67] to the labelled connections in the Wiring Centre |
5.3  TheHeat Bank Thermal Store 2000 requires connection to the following electrical supplies: 3A 230 VAC 50 Hz electrical supply to power the controls. 2 x 25A 230 VAC 50 Hz electrical supply to power the immersion heaters. Each 25A supply should be wired with 4mm cable. |
| 5.4 The Heat Bank Thermal Store 2000 will also require wiring to be made to a room thermostat (if used).
If a room thermostat is not to be used, the terminals provided should be linked - the unit is supplied with the link fitted, to be removed when connecting the room stat. |

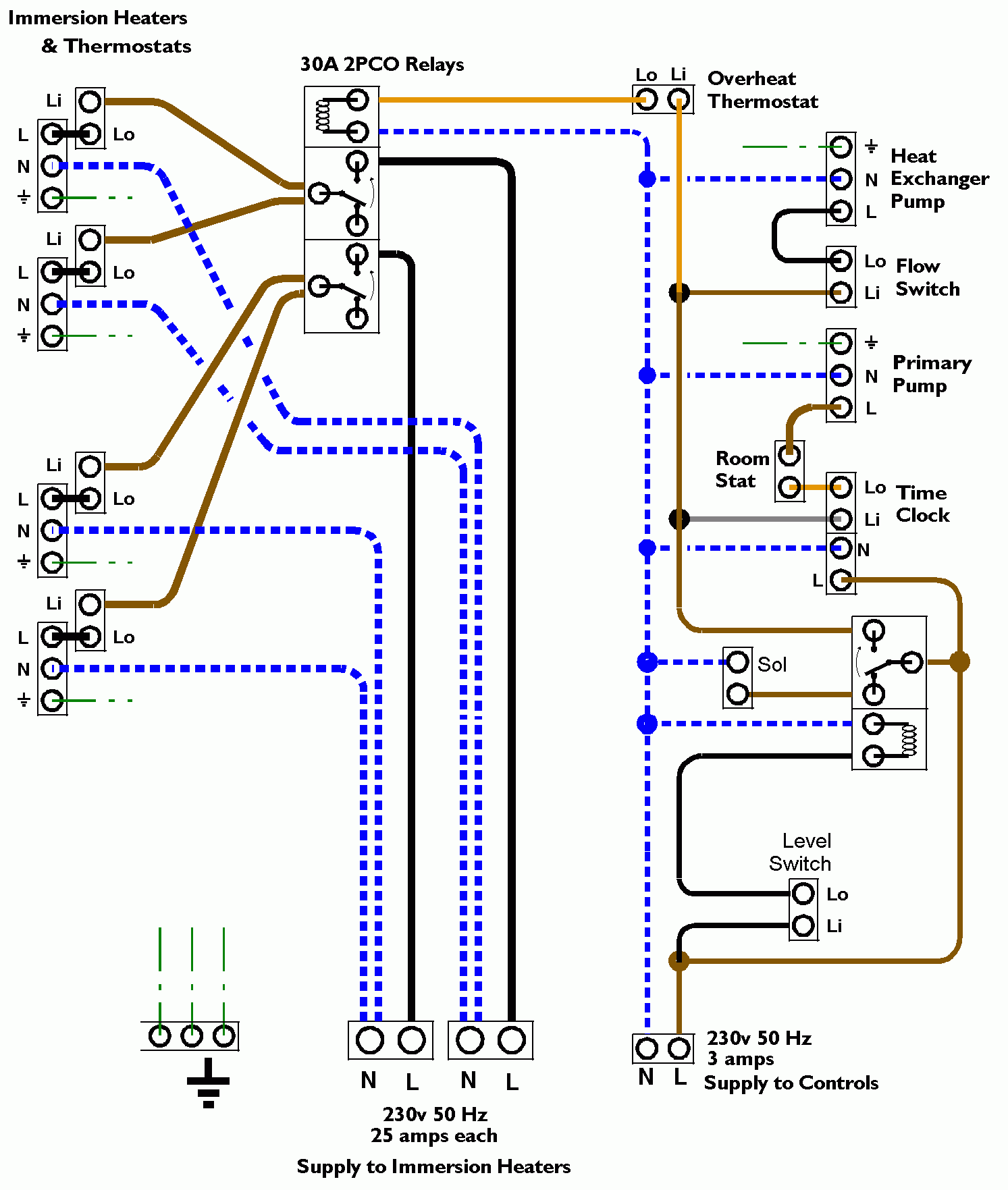

| 5.5 Wiring Schematic for the Heat Bank Thermal Store 2000.
|
