| DPS Ref: 3193 | |||
| Installation of Hi-Flow BZ | |||

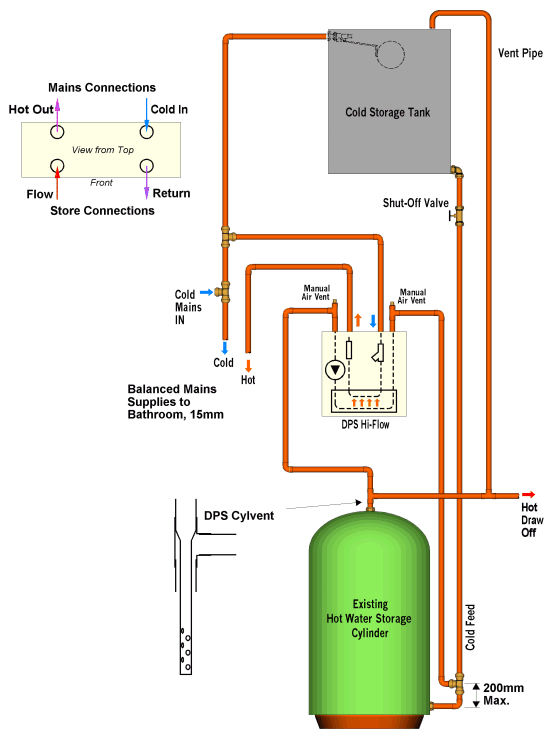

| The Hi-Flow BZ is designed to provide a additional mains pressure hot water services to properties already serviced by a hot water cylinder. The unit is retro-fitted to the existing installation as shown below. | |||
|
| |||
| Notes: 1. A Flow Restrictor (18 ltr/min) may be fitted onto the mains water supply into the unit to ensure flow rates do not exceed the capabilities of the Hi-flow. These can be supplied upon request. 2. In areas of hard water it is recommended that a Hydropath electronic scale inhibitor is fitted. These can be supplied pre-fitted and wired upon request (add -HS38 to the unit code). | |||
