Indirect Cased Hydro-Pack Units

03/09/03
Copies / revised specifications
can be obtained via fax / email

Hydro Pack Unit
Indirect
40mm Foam Insulation
High duty primary coil
Backup Immersion Heater
Cased




Unit Code

 CHP500-1770-1

Hot Storage Capacity [litres]

 114

Cold Storage Capacity [litres]

 114

Unit Diameter [mm]

 500

Height [mm]

 1760

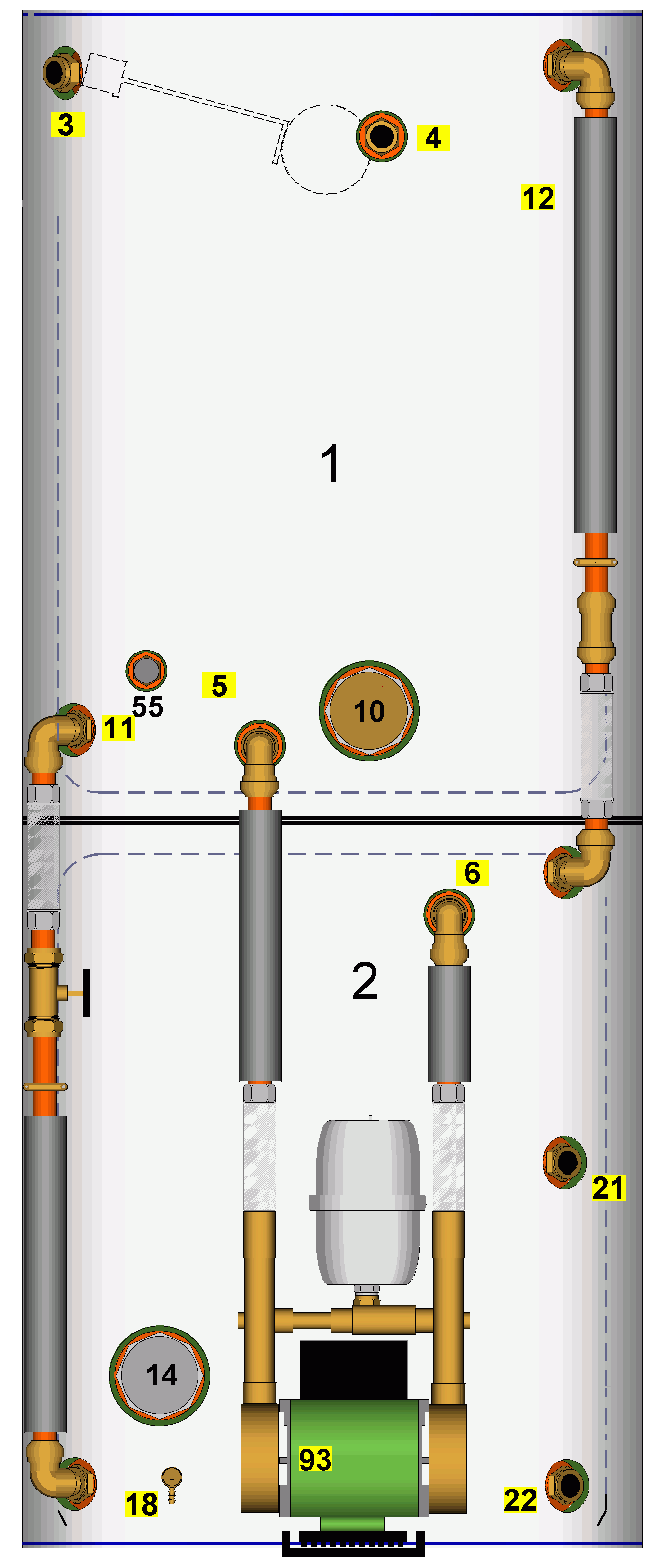

1  Cold Water Storage Cylinder
2  Hot water Cylinder
3  Mains Feed to Ball Valve
4  Overflow
5  Cold Water Supply with Gate Valve
6  Hot Water Supply
10  Blanked 2 1/4" Cleaning Eye
11  Cold Feed with Gate Valve
12  Vent Pipe
14  Immersion Heater 3kW Incaloy with Stat
18  Drain Cock
21  Flow to Primary Coil
22  Return from Primary Coil
55  Low Water Level Cut Out
93  Monsoon 3 bar Twin Impellor Pump


Cased Indirect Hydro-Pack Cylinder
