 Hydro Pack Unit
Indirect
40mm Foam Insulation
High duty
primary coil
Y-Plan
primary controls
Fitted
programmer
Fitted
Primary Pump, 5m head
All fitted
controls are wired
LWC1
Wiring Centre
Backup
Immersion Heater
Cased
|
Unit Code |
CHP 270-162 |
|
Hot Storage Capacity [litres] |
162 |
|
Cold Storage Capacity [litres] |
270 |
|
Unit Diameter [mm] |
600 |
|
Height [mm] |
1825 |

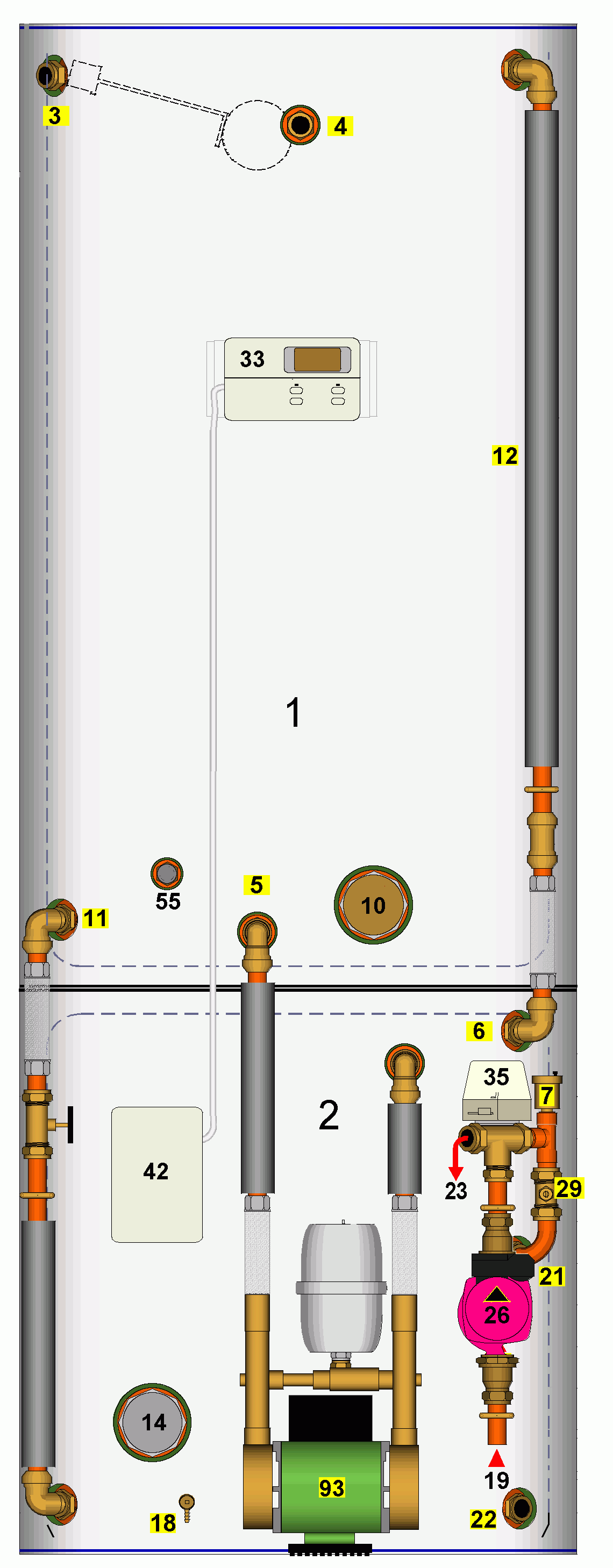

1 Cold Water Storage Cylinder
2 Hot
water Cylinder
3 Mains Feed to Ball Valve
4
Overflow
5 Cold Water Supply with Gate Valve
6 Hot Water
Supply
9 Economy Immersion Heater (3kW Low Noise)
10
Blanked 2 1/4" Cleaning Eye
11 Cold Feed with Gate
Valve
12 Vent Pipe
14 Immersion Heater 3kW Incaloy
with Stat
18 Drain Cock
19 Flow From
Boiler
21 Flow to Primary Coil
22 Return from
Primary Coil
23 Flow to Heating Circuit
26 Primary Pump UPS
15/50
29 Primary Coil Balancing
Valve
33 Programmer Danfoss CP715
35 Three
Port Mid Position Valve
42 Wiring Centre
55 Low Water
Level Cut Out
93 Monsoon 3 bar Twin Impellor
Pump |

Cased
Indirect Hydro-Pack Cylinder
|
