 Hydro Pack Unit
Direct
Electric
50mm Foam
Insulation
All fitted
controls are wired
LWC1
Wiring Centre
Low Water
Level Cut-Out
Cased
|
Unit Code |
CHP-270-144-ELC |
CHP-270-210-ELC |
|
Hot Storage Capacity [litres] |
144 |
210 |
|
Cold Storage Capacity [litres] |
227 |
227 |
|
Unit Diameter [mm] |
600 |
600 |
|
Overall Unit Diameter [mm] |
700 |
700 |
|
Height [mm] |
1700 |
2000 |

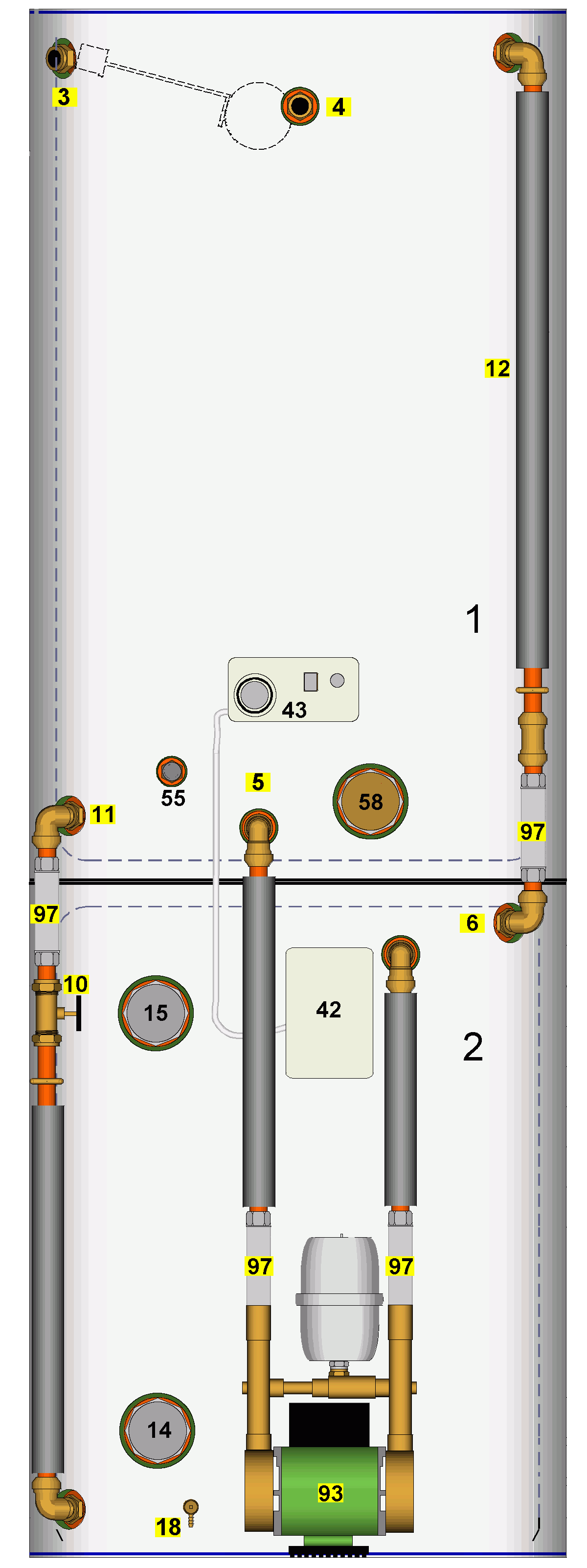

1 Cold Water Storage Cylinder
2 Hot
water Cylinder
3 Mains Feed to Ball Valve
4
Overflow
5 Cold Water Supply with Gate Valve
6 Vent
Pipe
10 Gate Valve
11 Cold Feed with Gate
Valve
12 Vent Pipe
14 Immersion Heater 3kW Incaloy
with Stat
15 Economy Immersion Heater 3kW Low Noise with
Stat
18 Drain Cock
42 Wiring
Centre
43 Grasslin QE7 Immersion Heater
Controller
55 Low Water Level Cut Out
58 Blanked
Immersion Boss
93 Monsoon 3 bar Twin Impellor Pump
97
Flexible Pipes |

Cased Electric Hydro-Pack Cylinder
With Immersion
Heater Controller
|
