Xcel Heat Bank Thermal Store System 28 Plate Heat Exchanger (45+ ltr/min) Directly heated from remote source 40mm Foam Insulation GX-Plan primary controls Fitted Primary Controls Cased

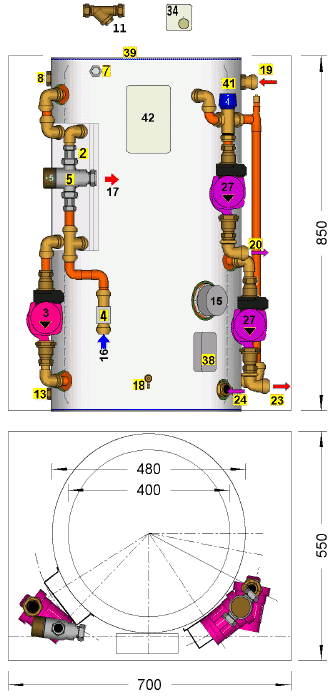

3 Heat Exchanger Pump, UPS15/50 4 Flow Switch 5 Thermostatic Blending Valve (1", pre-set to 5) 7 Hydroscopic Air Vent 8 Vent, 3/4"FI (Blanked) 11 Y-Pattern Strainer (supplied loose) 13 Cold Feed / Expansion, 3/4"FI (Blanked) 15 Immersion Heater 3kW with 2 stats 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler, 22mm 20 Return to Boiler, 22mm 23 Flow to Heating Circuit, 22mm 24 Return from Heating Circuit, 22mm 27 Primary Pump, UPS 15/50 38 Cylinder Thermostat (Tamperproof, pre-set to 75°C) 39 White Coated Steel Casing 41 Primary Blending Valve Heatguard UF (Pre-set to 4) 42 Terminal Box WB12 with relay The GX100 Heat Bank Thermal Store provides both mains pressure, temperature controlled, hot water, at up to 40 litres per minute, and 10 bar pressure. The store also provides fully pumped central heating. The store is very small, capable of hiding under a kitchen worktop, and has very low standing heat losses. It can however, deliver a full bath in under 4 minutes, with hot water to spare, and follow up with another bath within 15 minutes of the first. Also, radiators can be brought up to full temperature in under a minute of turning the heating on. Mechanical installation consists of simple push fit-pipework connections, and the only site wiring required is connection to the mains electrical supply, boiler and room thermostat. Being a fully vented thermal store, the system can be installed by installers not qualified to install unvented systems. As standard, the store is on 24hrs a day, with the room thermostat being the only control the householder need use. A backup 3kW immersion heater provides backup central heating and hot water in case of boiler failure. All components are tamperproof. |
