 Heat Bank Thermal Store
System Xcel
Cylinder 28 Plate
Heat Exchanger (45 ltr/min) 40mm Foam
Insulation GX-Plan
primary controls Directly
Pumped Heating Circuit Underfloor
Primaries RX1
Programmable Room Thermostat Fitted
Primary Pump, 5m head All fitted
controls are wired
Thermostatic Blending Valve 1" Backup
Immersion Heater Cased

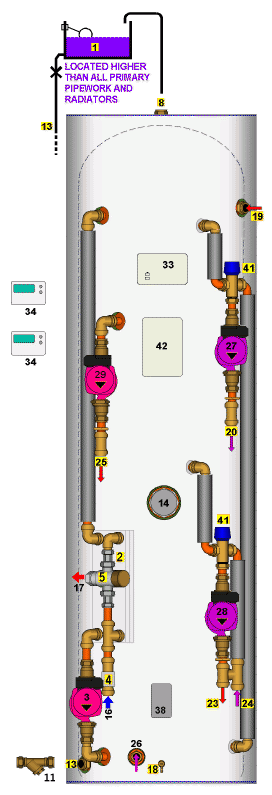

2 Plate Heat Exchanger (L18-24) 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, Mixcall III 8 Vent 11 Y-Pattern Strainer (supplied loose) 13 Cold Feed / Expansion 14 Immersion Heater 3kW Incaloy with Twin Stats 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 20 Return to Boiler 23 Flow to U/F Heating Circuit 24 Return from U/F Heating Circuit 25 Flow to Heating Circuit 26 Return from Heating Circuit 27 Boiler Pump UPS 15/60 28 U/F Circuit Pump UPS 15/50 29 Heating Circuit Pump UPS 15/50 33 Danfoss Radio Receiver 34 Danfoss TP5 RF Room Thermostats 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre (WB12) Please ensure that all underfloor pipework is suitable for vented systems.
|
| ||||||||||
|
| |||||||||||
