 Heat Bank Thermal Store System
2000
Everest combination unit 28 Plate Heat
Exchanger (45+ ltr/min) Immersion Heater
Controller 40mm Foam Insulation Sealed primary
system 18 litre Primary Expansion Vessel All fitted controls
are wired Thermostatic Blending Valve, Heatguard 28mm Central Overheat
Protection Boost Heater Timer Central Heating
Timer & Room Stat Primary Filling
Loop
Secondary Return Pump Cased

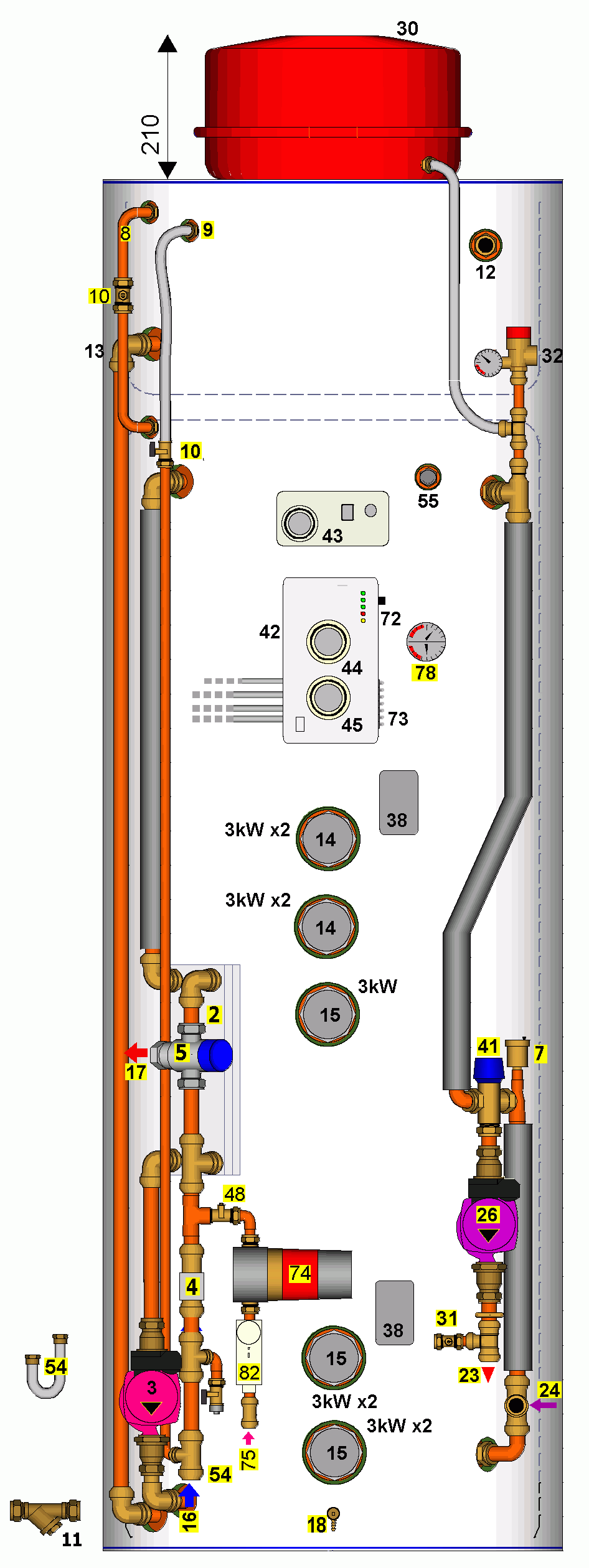

3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 28mm 8 Filling Vent 9 Feed to Ball Valve 10 Isolating Valve 11 Y-Pattern Strainer (supplied loose) 12 Overflow 13 Cold Feed / Expansion 14 Boost Immersion Heaters - 12kW total 15 Economy Immersion Heaters - 15kW total 16 Cold Mains In, 22mm 17 Hot Mains Out, 22/28mm 18 Drain Cock 23 Flow to Heating Circuit, 22mm 24 Return from Heating Circuit, 22mm 26 Primary Pump UPS 15/50 30 Primary Expansion Vessel 18 litres 31 Primary Filling Point 32 Pressure Relief Valve with Gauge 3 bar 1/2'' 38 Recovery Thermostats (tamperproof) 41 Primary Blending Valve (28mm) 42 Wiring Centre with Central Heating Clock 43 Grasslin QE7 Immersion Heater Controller 44 Central Heating Time Clock 45 Secondary Return Time Clock 48 Check (Non-Return) Valve 54 Filling Loop 72 Manual Reset Overheat Thermostat 73 Thermal Circuit Breakers for Power Supplieds 74 UP 15 40-P Bronze Secondary Circulator 75 Secondary Return Connection, 15mm 82 Secondary Return Pipe Thermostat 90 Overheat Discharge, 15mm |
| ||||||||||
|
| |||||||||||
