Heat Bank Thermal Store
System Xcel Cylinder 28 Plate Heat Exchanger (45+ ltr/min) Directly heated from remote source 40mm Foam Insulation GX-Plan primary controls Double Cylinder Stat Arrangement Directly Pumped Heating Circuit Underfloor Primaries Fitted Primary Pump, 5m head All fitted controls are wired Thermostatic Blending Valve, Heatguard 28mm Heatguard 28mm GX Valve Backup Immersion Heater Cased

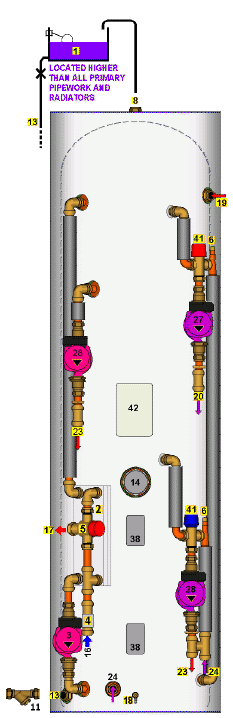

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 8 Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 13 Cold Feed / Expansion 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 20 Return to Boiler 23 Flow to Heating Circuit 24 Return from Heating Circuit 27 Boiler Pump UPS 15/60 28 Heating Circuit Pump UPS 15/50 28 Heating Circuit Pump UPS 15/60 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 41 Primary Blending Valve, Heatguard 28mm 42 Wiring Centre |
| |||||||||||||||
