Specification 5602-1
Philip Morris

24/03/03

Heat Bank Thermal Store System
Xcel Cylinder
14 Plate Heat Exchanger (30 ltr/min)
Directly heated from remote source
40mm Foam Insulation
GX-Plan primary controls
Double Cylinder Stat Arrangement
Directly Pumped Heating Circuit
TP9 Programmable Room Thermostat with Hot Water
Fitted Primary Pump, 6m head
All fitted controls are wired
Thermostatic Blending Valve, Heatguard 22mm
28mm Primaries
Heatguard 28mm GX Valve
Cased


Unit Code

 CXC-130-5602-1 CXC-150-5602-1 CXC-180-5602-1 CXC-210-5602-1

Capacity [litres]

 130 150 180 210

Base Diameter [mm]

 450 450 450 450

Overall Diameter [mm]

 530 530 530 530

Height [mm]

 1050 1200 1380 1550

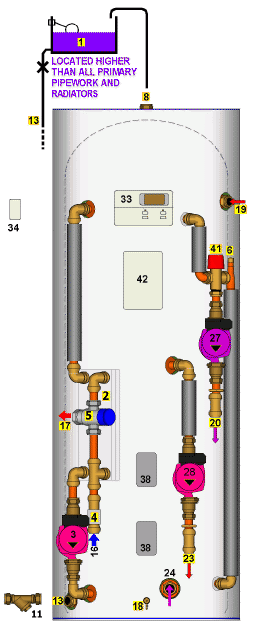

1   Remote Feed and Expansion Tank
2   Plate Heat Exchanger L18-14
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve, RWC Heatguard 22mm
8   Vent
9   Store Filling Point
11  Y-Pattern Strainer (supplied loose)
13  Cold Feed / Expansion
16  Cold Mains In, 22mm
17  Hot Mains Out, 22mm
18  Drain Cock
19  Flow From Boiler, 28mm
20  Return to Boiler, 28mm
23  Flow to Heating Circuit, 28mm
24  Return from Heating Circuit, 28mm
27  Boiler Pump UPS 15/60
28  Heating Circuit Pump UPS 15/60
33  TP9 Programmable Room Thermostat
34  Room Temperature Sensor
38  Cylinder Thermostat (with Immersion Pocket)
39  White Coated Steel Casing
41  Primary Blending Valve, RWC Heatguard 28mm
42  Wiring Centre



Xcel GX Heat Bank Thermal Store



The GXV Xcel a superb all-round performance system, originally designed as a compact, high output hot water and heating system for council properties. To obtain 100% useful input from the boiler, the store is heated directly by the boiler - no coils. A feed and expansion tank must be fitted above the highest point in the primary system. The main advantages of the system are...
No Motorised Valves for either hot water or heating - more reliable & easier to service.
Very rapid recovery of store - hot water in under 3 minutes from cold.
Large volumes of hot water from a small store.
Maintains condensing boilers in condensing mode.
Ability to bring central heating up to temperature extremely quickly (store recovered).
Store acts as an ideal air separator.

The unit is fitted with a Mixcall III Thermostatic Blending Valve, to control the hot water temperature, and prevent scalding.  The graph shows the pressure drop across the valve for various hot water flow rates.

The Valve is adjustable from 27°C to 67°C, and has a lockable head.

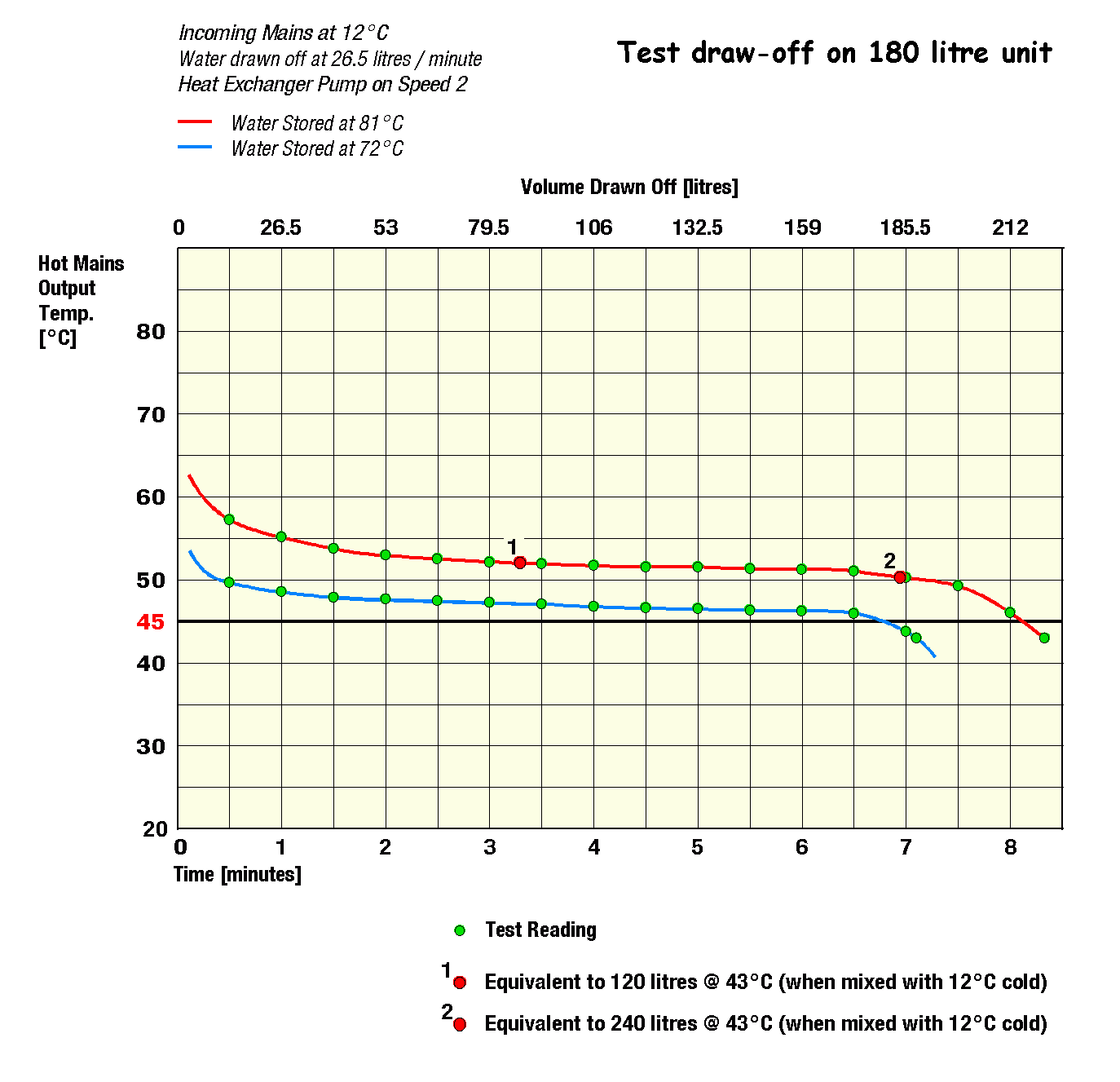

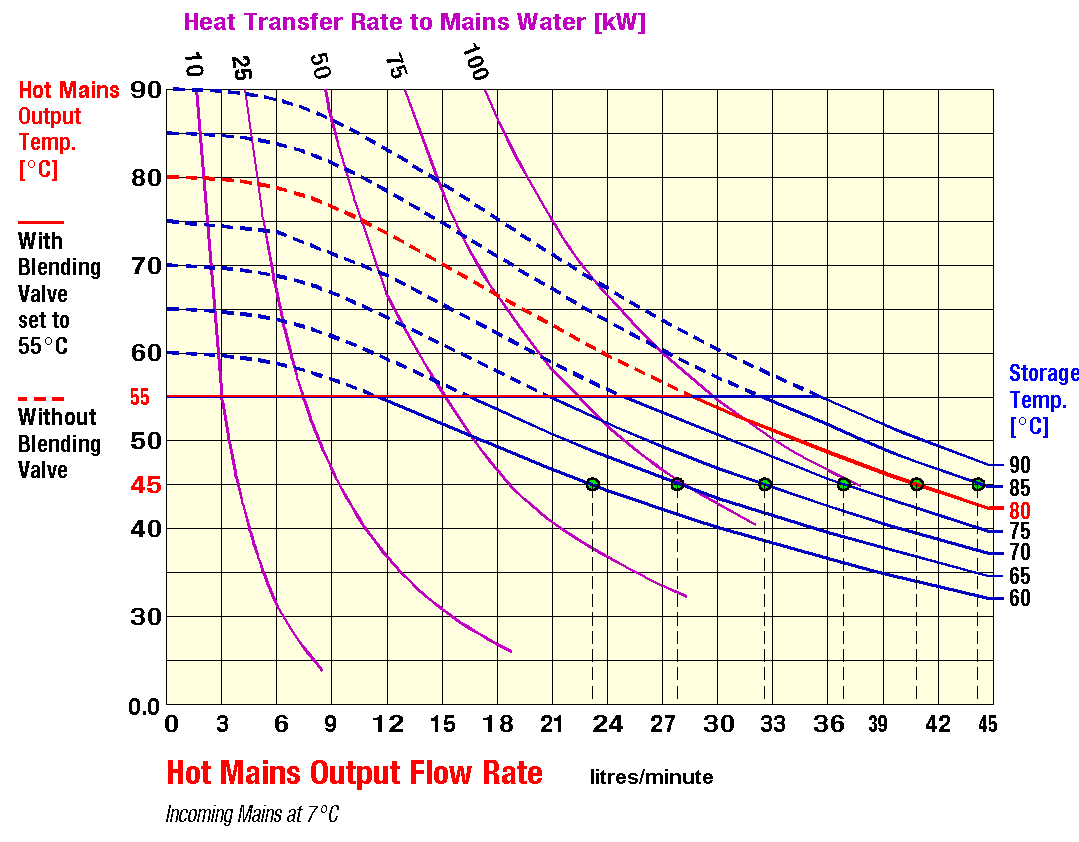

The unit is fitted with one heat exchanger, capable of delivering 30 litres/minute @45°C (80°C storage). The graphs shown the domestic hot water output that can be achieved for various storage temperatures.



A Mains Water Isolating Lever Valve must be fitted within the cylinder cupboard, in clear view and easily accessible. A Strainer (supplied loose) must also be fitted, down stream of the isolating valve, to protect the flow switch [4].
It is advised that the mains water is tested for hardness. In areas of hard water, we advise the use of a scale inhibitor.
It is important that SENTINEL X100 Inhibitor is used to protect the Heat Bank Thermal Store.  Use 1 litre per 100 litres of stored water. A suitable anti-freeze, such as X500, should also be added when there is a chance that the unit will be left filled and unheated in freezing conditions.
