Heat Bank Thermal Store
System Stowaway advanced F+E Pandora Air System 28 Plate Heat Exchanger (45+ ltr/min) Indirect 40mm Foam Insulation High duty primary coil S-Plan primary controls Fitted programmer All fitted controls are wired Manual Fill - No Overflow Thermostatic Blending Valve, Heatguard 22mm 28mm Primaries Low Water Level Indicator LWC1 Wiring Centre Primary Filling Loop Backup Immersion Heater Cased

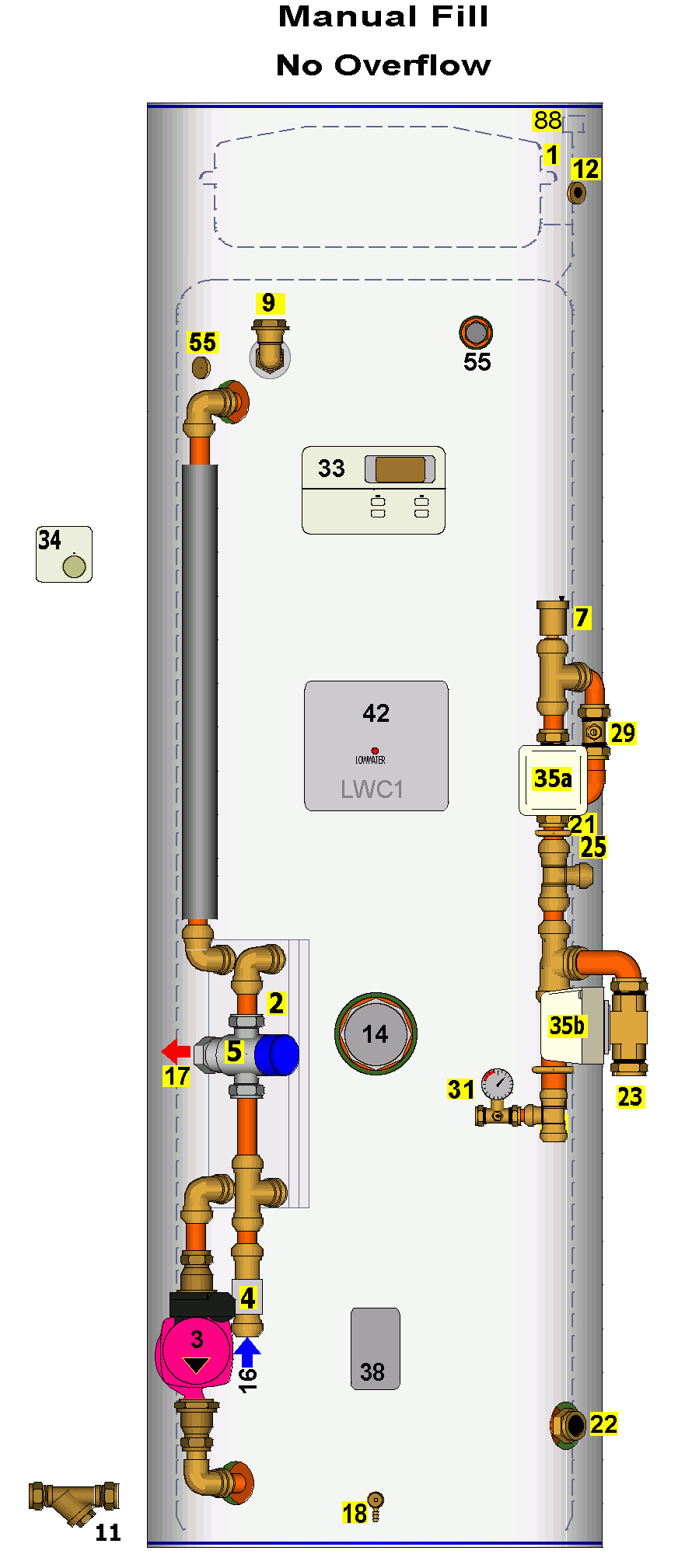

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 7 Automatic Air Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 12 Anti-Pressure Valve 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 28mm 21 Flow to Primary Coil 22 Return from Primary Coil 23 Flow to Heating 28mm 25 By-Pass Connection 22mm 29 Primary Coil Balancing Valve 33 Programmer Danfoss CP715 35a Two Port Zone Valve - Hot Water 22mm 35b Two Port Zone Valve - Heating 28mm 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 55 Water Level Switch 88 Anti-Vacuum Valve 3/4" |
| ||||||||||||||||||||||||||||||
