Heat Bank Thermal Store
System Stowaway
advanced F+E Pandora
Air System 14 Plate
Heat Exchanger (30 ltr/min) Indirect
40mm Foam Insulation High duty
primary coil Y-Plan
primary controls Sealed
primary system 12 litre
Primary Expansion Vessel Fitted
programmer Fitted
Primary Pump, 5m head All fitted
controls are wired Manual
Fill - No Overflow
Thermostatic Blending Valve, Heatguard 22mm Primary
Filling Loop Backup
Immersion Heater Cased
Internal Inhibitor
Unit Code |
CPC-130-IND-YP-SS |
CPC-150-IND-YP-SS |
CPC-180-IND-YP-SS |
CPC-210-IND-YP-SS |
CPC-250-IND-YP-SS |
Capacity [litres] |
130 |
150 |
180 |
210 |
250 |
Base Diameter [mm] |
450 |
450 |
450 |
450 |
450 |
Overall Diameter [mm] |
530 |
530 |
530 |
530 |
530 |
Height [mm] |
1200 |
1300 |
1550 |
1750 |
20 |

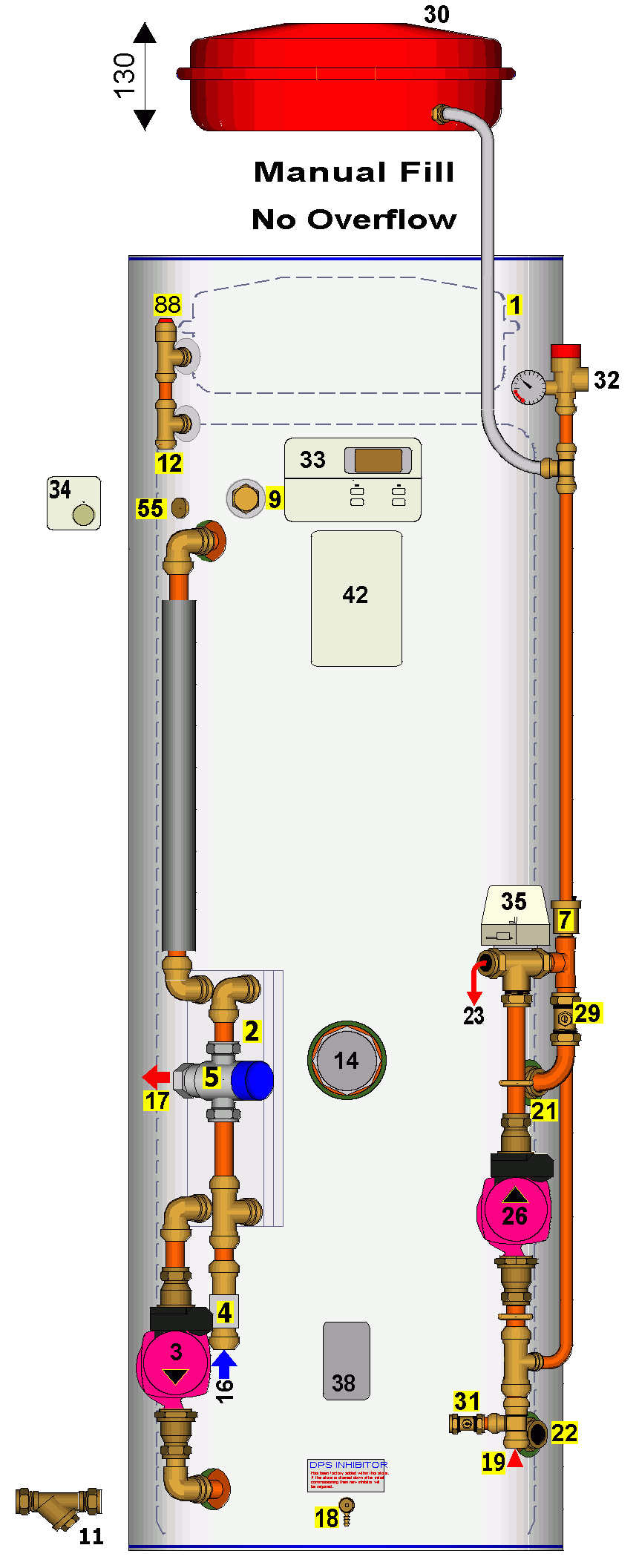

1 Internal Expansion
Vessel 2 Plate Heat
Exchanger 3 Heat Exchanger
Pump 4 Flow Switch 5 Thermostatic
Blending Valve, RWC Heatguard 22mm 7 Automatic Air
Vent 9 Store Filling Point 11 Y-Pattern
Strainer (supplied loose) 12 Anti-Pressure
Valve 14 Immersion Heater 3kW Incaloy with
Stat 16 Cold Mains In, 22mm 17 Hot Mains Out,
22mm 18 Drain Cock 19 Flow From
Boiler 21 Flow to Primary Coil 22 Return from
Primary Coil 23 Flow to Heating
Circuit 26 Primary Pump UPS 15/50 29 Primary
Coil Balancing Valve 30 Primary Expansion Vessel 12
litres 32 Pressure Relief Valve with Gauge 3 bar
1/2'' 33 Programmer Danfoss CP715 35 Three
Port Mid Position Valve 38 Cylinder Thermostat (with
Immersion Pocket) 39 White Coated Steel
Casing 42 Wiring Centre 54 Filling Loop
(disconnect after use) 55 Blanked Boss for Optional Water
Level Switch 88 Anti-Vacuum Valve 3/4" Corrosion
Inhibitor is supplied already added into the store after factory testing
of the unit. Should the unit be drained down after initial filling fresh inhibitor will be
required at a ratio of 1 litre to 100 litres of store
capacity. |
Y-Plan Indirect Sealed System Pandora
|
