 Heat
Bank System Stowaway advanced F+E Pandora Air System
14
Plate Heat Exchanger (30 ltr/min) Indirect
40mm
Foam Insulation High duty primary
coil
S-Plan primary controls Sealed primary
system 12 litre Primary Expansion Vessel Fitted programmer
Fitted Primary Pump, 6m head All fitted controls
are wired Manual Fill - No Overflow Thermostatic
Blending Valve, Heatguard 22mm 28mm Primaries
Backup Immersion Heater Cased
Internal Inhibitor

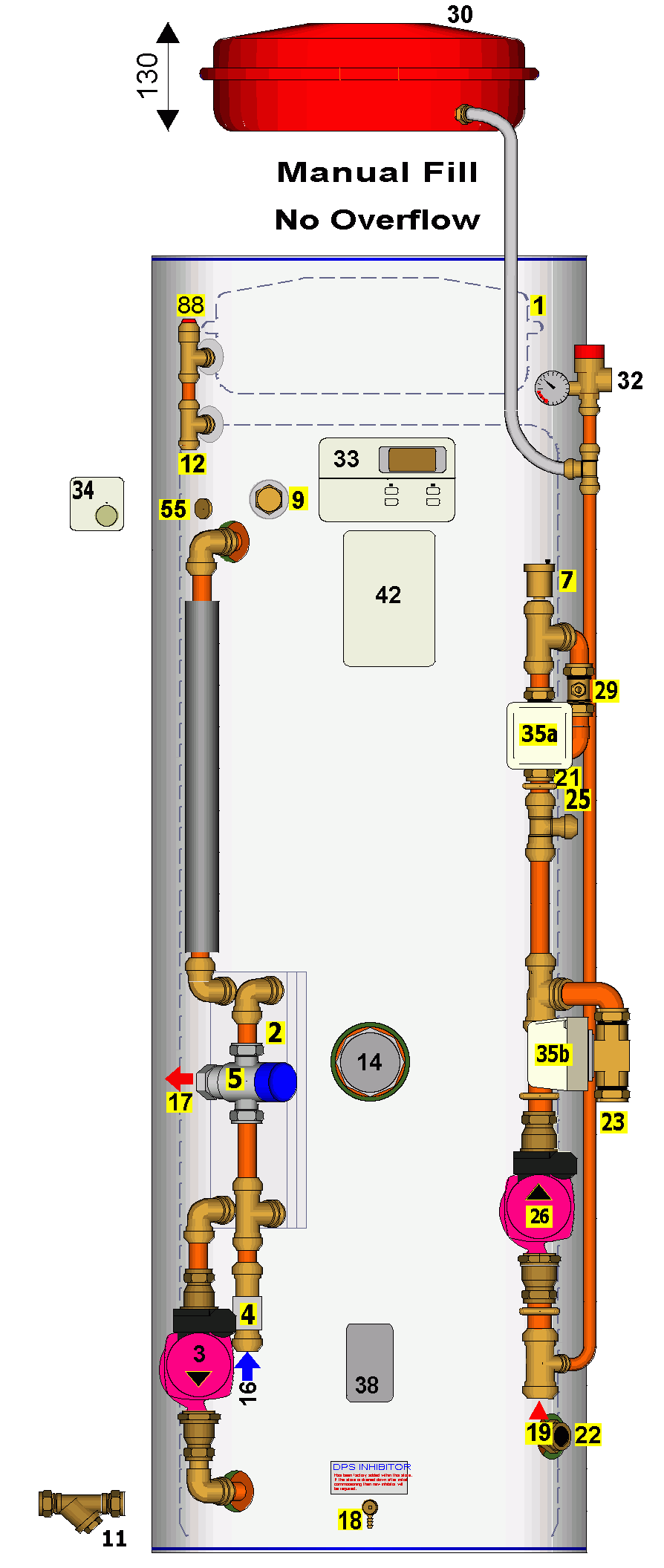

2 Plate Heat Exchanger 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 22mm 7 Automatic Air Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 12 Anti-Pressure Valve 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22mm 18 Drain Cock 19 Flow From Boiler 28mm 21 Flow to Primary Coil 22 Return from Primary Coil 23 Flow to Heating 28mm 25 By-Pass Connection 22mm 26 Primary Pump UPS 15/60 29 Primary Coil Balancing Valve 30 Primary Expansion Vessel 12 litres 32 Pressure Relief Valve with Gauge 3 bar 1/2'' 33 Programmer Danfoss CP715 34 Programmable Room Stat 35a Two Port Zone Valve - Hot Water 22mm 35b Two Port Zone Valve - Heating 28mm 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 42 Wiring Centre 55 Blanked Boss for Optional Water Level Switch 88 Anti-Vacuum Valve 3/4" |
Corrosion Inhibitor is supplied already added into the store after factory testing of the unit. Should the unit be drained down after initial filling, fresh inhibitor will be required at a ratio of 1 litre to 100 litres of store capacity. | ||||||||||||||||||||||||||||||
