 Heat Bank Thermal Store System
Xcel
Cylinder 28 Plate Heat Exchanger (45+ ltr/min) 40mm Foam
Insulation Fitted Cylinder Thermostat (Only) GX-Plan primary
controls Double Cylinder Stat Arrangement Directly Pumped
Heating Circuit Fitted Primary
Pump, 5m head All fitted controls are wired Thermostatic
Blending Valve, Heatguard 28mm 28mm Primaries
Additional 6m Finned Coil - Solar Heatguard 28mm GX
Valve Backup Immersion Heater Cased

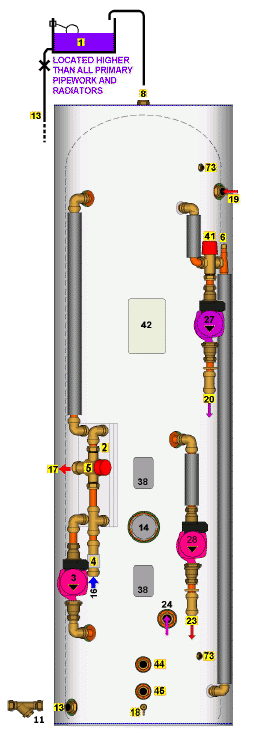

2 Plate Heat Exchanger L18-28 3 Heat Exchanger Pump 4 Flow Switch 5 Thermostatic Blending Valve, RWC Heatguard 28mm 8 Vent 9 Store Filling Point 11 Y-Pattern Strainer (supplied loose) 13 Cold Feed / Expansion 14 Immersion Heater 3kW Incaloy with Stat 16 Cold Mains In, 22mm 17 Hot Mains Out, 22/28mm 18 Drain Cock 19 Flow From Boiler, 28mm 20 Return to Boiler, 28mm 23 Flow to Heating Circuit, 28mm 24 Return from Heating Circuit, 28mm 27 Boiler Pump UPS 15/60 28 Heating Circuit Pump UPS 15/60 38 Cylinder Thermostat (with Immersion Pocket) 39 White Coated Steel Casing 41 Primary Blending Valve 42 Wiring Centre (with cylinder thermostat relay) 44 Flow to Lower Coil, 22mm 45 Return from Lower Coil, 22mm 73 Sensor Pocket |
| ||||||||||||||||||||
|
| |||||||||||||||||||||
