SPECIFICATION 1450
Designed for H2O Heating Services Ltd.

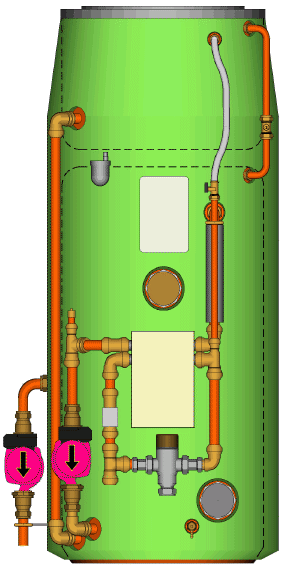

Heat Bank Thermal Store Thermal Store
Everest Type with Integral F&E Tank
Electric
3 kW Incaloy Heater
Blanked Heater Boss
Heat Exchanger Controls
Thermostatic Blending Valve
Ball Valve with Mains Feed
Radiator Circuit Pump
Cylinder Thermostat
Junction Box



Dimensions

Base Unit Diameter

450mm

Overall Diameter

550mm

Height

1200mm

Capacity

130 litres
Connections
Cold Mains In 22mm
Hot Mains Out 22mm
Flow to Radiator Circuit 22mm
Return from Radiator Circuit

22mm

The connection to the ball valve is made using a flexible filling loop.  This may be left connected during operation to provide automatic re-filling via the ball valve.  An overflow will be required. Alternatively, the filling loop may be disconnected during operation, with the unit manually re-filled.  In this type of installation, no overflow is required.

The unit is suitable to supply a heating load of 3kW, less hot water usage.

No special qualifications are required to install this unit, however installers must be competent in the basics of plumbing and wiring.
