SPECIFICATION 1489
Designed for Steve Houseman

10/05/00

Heat Bank Thermal Store System
Everest combination unit
450mm (18") diameter
Directly heated from remote source
35mm Foam Insulation
GX-Plan primary controls
Directly Pumped Heating Circuit
RX1 Programmable Room Thermostat
All fitted controls are wired
Backup Immersion Heater

Dimensions

Base Unit Diameter

450mm

Overall Diameter

520mm

Height

1720mm

Capacity

210  litres

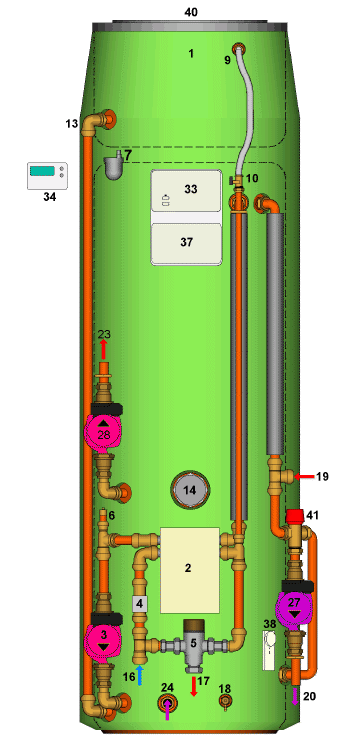

1   Integral Feed & Expansion Tank
2   Plate Heat Exchanger
3   Heat Exchanger Pump
4   Flow Switch
5   Thermostatic Blending Valve
6   Manual Air Vent
7   Automatic Air Vent
8   Filling Vent
9   Feed to Ball Valve
10  Isolating Valve
13  Cold Feed / Expansion
14  Immersion Heater 3kW Incaloy with Stat
16  Cold Mains In
17  Hot Mains Out
18  Drain Cock (supplied loose)
19  Flow From Boiler
20  Return to Boiler
23  Flow to Heating Circuit
24  Return from Heating Circuit
27  Boiler Pump UPS 15/50
28  Heating Circuit Pump UPS 15/60
33  Danfoss Radio Reciever
38  Cylinder Immersion Thermostat Danfoss ITC
40  Tight Fitting Lid
41  Primary Blending Valve
